Washing Cab Windows, Servicing Head Lights and Wiper

Use ladder and landing to clean left side of cab.

CAUTION: Raise feeder house completely and lower safety stop on feeder house lift cylinder. Close cab door securely and use hand holds.

IMPORTANT: Do not manually move the wiper arm, this could cause damage to the wiper mechanism.

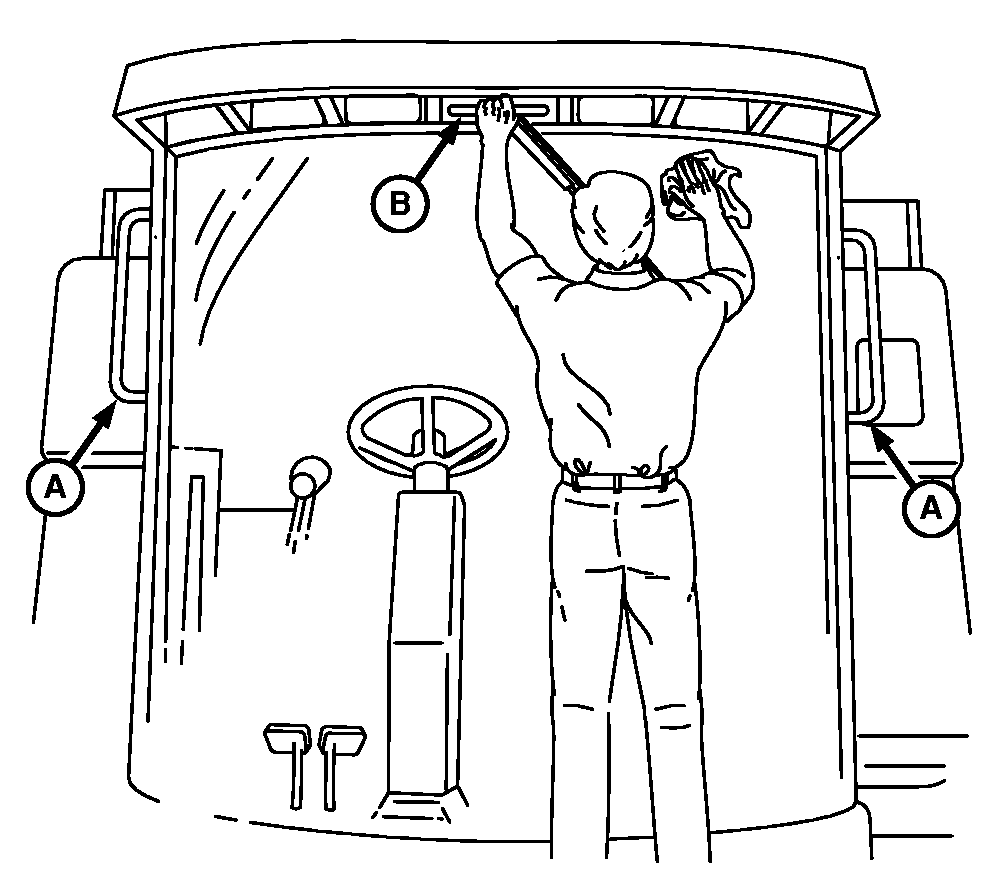

Stand on raised feeder house with feeder house safety stop lowered to clean front cab window and service head lights or wiper.

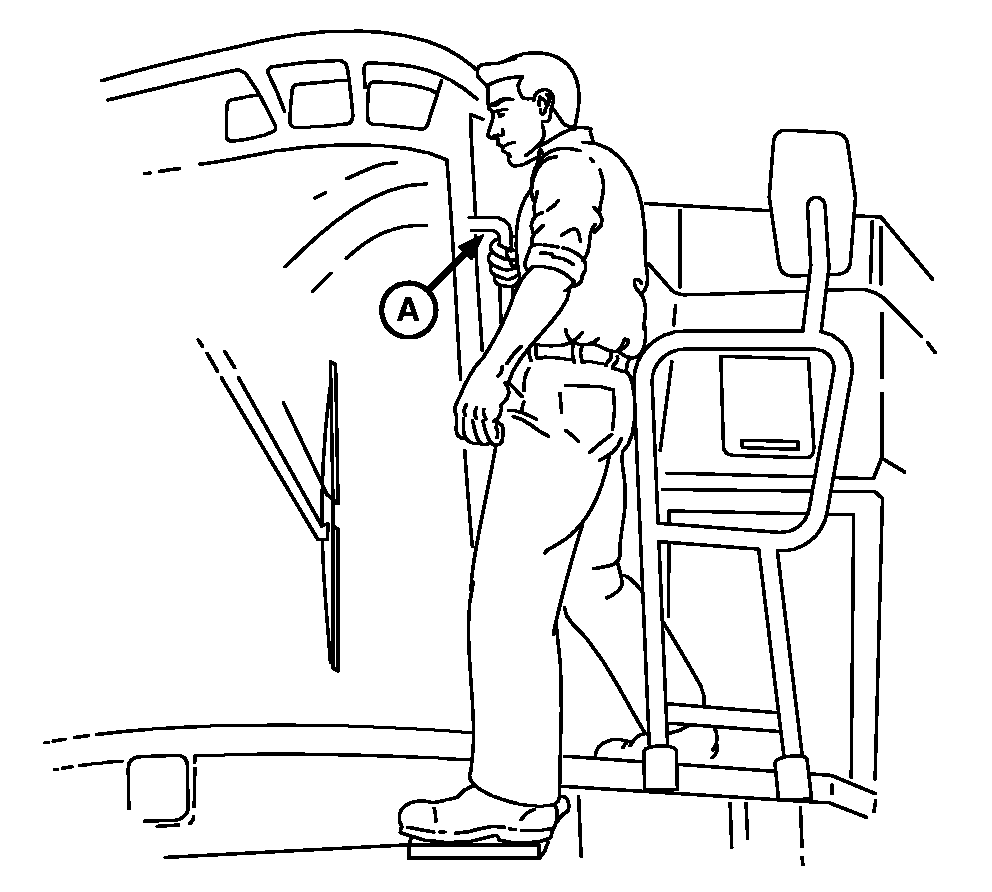

For stability, use handrails (A) on either side of the cab and handholds (B) on either side of the wiper.

Access feeder house by using step on left-hand side.

Use step and landing to clean right side of cab.

A-Handrails
B-Handholds

OUO6075,0003639 -19-10MAY04-1/1
