Feed Accelerator Belt Idler-Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

Feed accelerator belt idler is located on right-hand side of combine behind feeder house pivot.

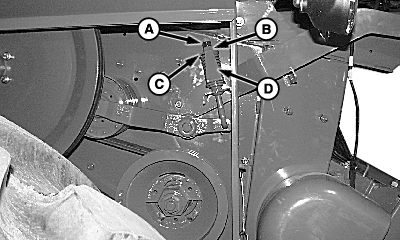

Loosen locking nut (A).

Tighten nut (B) until washer (C) aligns with end of gauge (D). Tighten locking nut.

A-Locking Nut
B-Nut
C-Washer
D-Gauge
