Discharge Beater Belt-Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

Loosen locking nut (A).

Tighten nut (B) until washer (C) aligns with end of gauge (D).

Tighten locking nut.

NOTE: This also adjusts tension for chopper jackshaft drive belt.

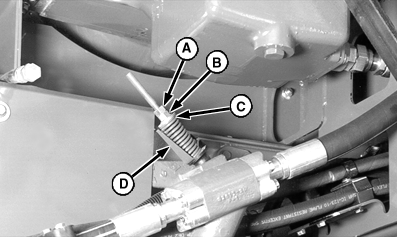

A-Locking Nut
B-Nut
C-Washer
D-Gauge
