Discharge Beater Belt-Replacing

causym CAUTION: Shut OFF engine, set parking brake and remove key.

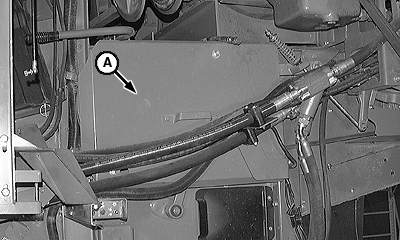

Remove shield (A) from left-hand rear of machine.


A-Shield

H51927

OUO6075,00037F6 -19-26MAY04-1/2

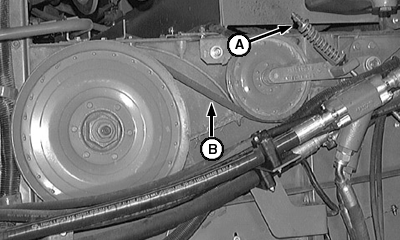

Loosen spring tensioner nut (A) and remove belt (B).

Install new belt and adjust belt idler tension spring to end of gauge.


A-Nut
B-Belt

H51928

OUO6075,00037F6 -19-26MAY04-2/2
