Header Reel/Belt Pickup Pump Belt-Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

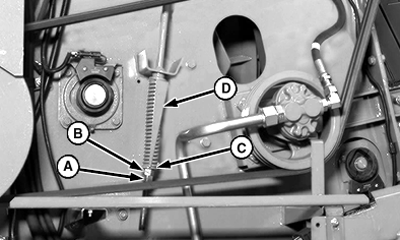

Loosen locking nut (A).

Tighten nut (B) until washer (C) aligns with end of gauge (D).

Tighten locking nut.

A-Locking Nut
B-Nut
C-Washer
D-Gauge

OUO6075,00037F8 -19-26MAY04-1/1
