Header Reel/Belt Pickup Pump Belt-Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

NOTE: It is not necessary to disconnect any hydraulic hoses when replacing this belt.

Remove shields.

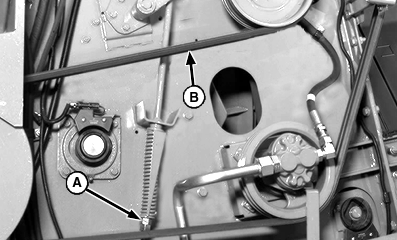

Loosen spring tension idler nut (A).

Remove header drive belt (see Replacing Fixed Speed Feeder House Belt).

Disconnect wire from electric clutch.

Remove belt (B).

Install new belt and adjust belt idler tension to end of gauge.

Check feeder house variable sheave gap.

A-Nut
B-Belt

OUO6075,00037F9 -19-26MAY04-1/1
