CounterShaft Right-Hand Front Belt-Replacing

causym CAUTION: Shut OFF engine, set parking brake and remove key.

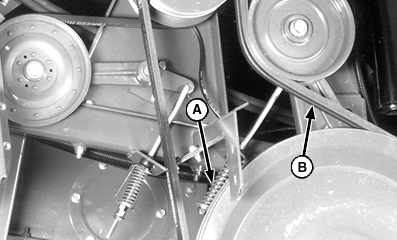

Loosen idler spring (A) and remove belt (B).

Install new belt and adjust belt idler tension spring until washer aligns with end of gauge.


A-Idler Spring
B-Right-Hand Front Belt

H62320

OUO6075,00037FB -19-26MAY04-1/1
