CounterShaft Right-Hand Rear Belt-Replacing

causym CAUTION: Shut OFF engine, set parking brake and remove key.

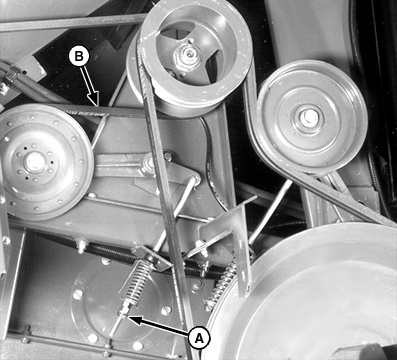

Remove right-hand front countershaft belt. Loosen tension on idler nut (A) and remove rear jackshaft belt (B).

Install new belt and adjust belt idler tension spring until washer aligns with end of gauge.

Install front jackshaft belt and adjust idler tension.


A-Nut
B-Rear Countershaft Belt

H54681

OUO6075,00037FD -19-26MAY04-1/1
