Shoe, Fan and Conveyor Auger Belt-Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

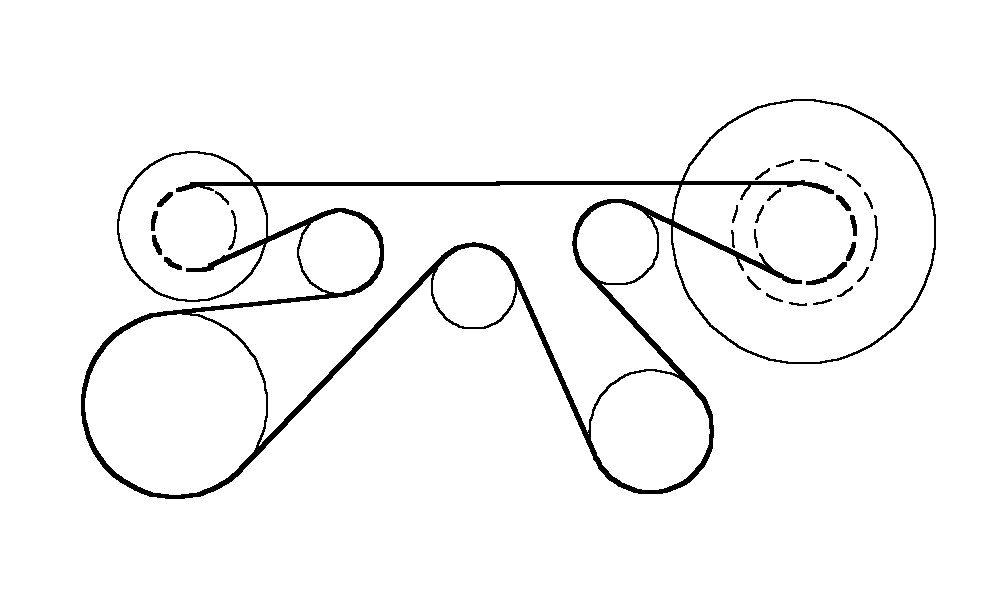

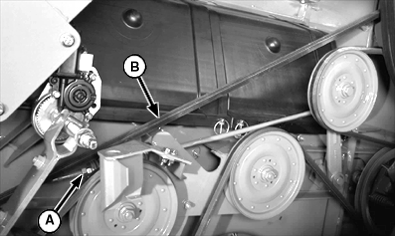

Remove right-hand front countershaft and cleaning fan variable drive belts. Loosen tension on idler nut (A) and remove shoe, fan and conveyor auger drive belt (B).

Install new belt.

Install new belt and adjust belt idler tension until washer aligns with end of gauge.

Reinstall front jackshaft belt, fan variable belt and adjust idler tensions.

A-Nut
B-Belt
