Upper Tailings Auger Drive Chain-Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

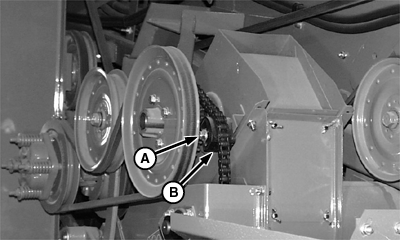

Loosen bolt (A).

Adjust block (B) to tighten chain.

Tighten bolt.

A-Bolt
B-Block

OUO6075,000380D -19-26MAY04-1/1
