Engine Oil Level

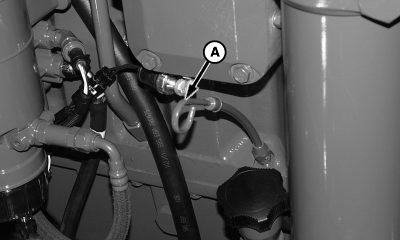

Check engine oil level at dipstick (A) daily. Do not operate engine when oil level is below low mark on dipstick.

IMPORTANT: It is vital to maintain the engine oil at the correct level to ensure a long service life. Check oil level with combine parked on level ground.

NOTE: Verify dipstick is pushed completely into housing before removing to check oil level.

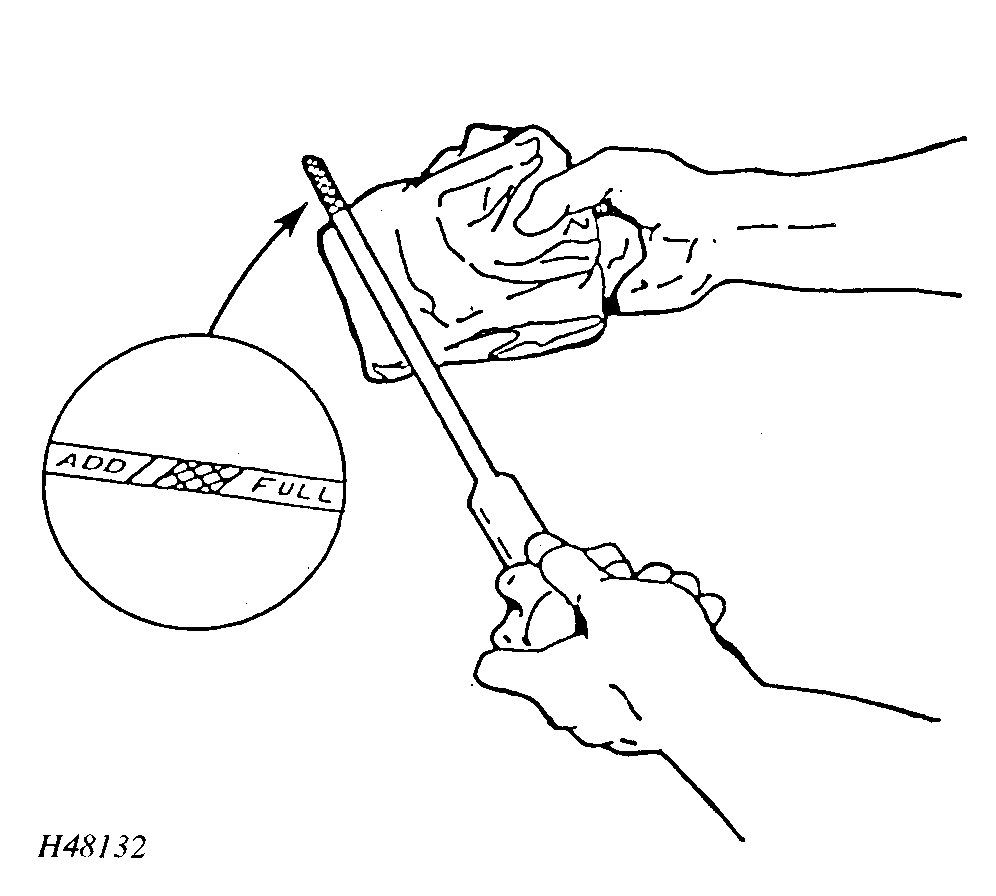

Remove dipstick and check oil level. Oil level should be between "ADD" and top of cross-hatch area on dipstick. If oil level is below the "ADD" mark, add oil as needed. (See Fuel and Lubricants section for oil recommendations).

Watch for leaks. Do not operate engine with oil level below "ADD" mark.

A-Dipstick

OUO6075,0003903 -19-09JUN04-1/1
