Mirror Heater Switch

NOTE: Key switch must be ON or combine must be running for mirror heater switch to operate.

Mirrors are equipped with heaters to remove ice and fog. Mirror heater switch is a two position switch. With switch in OFF position (I) (bottom switch pressed in), mirrors will not heat. With switch in ON position (II) (top switch pressed in), mirrors will heat.

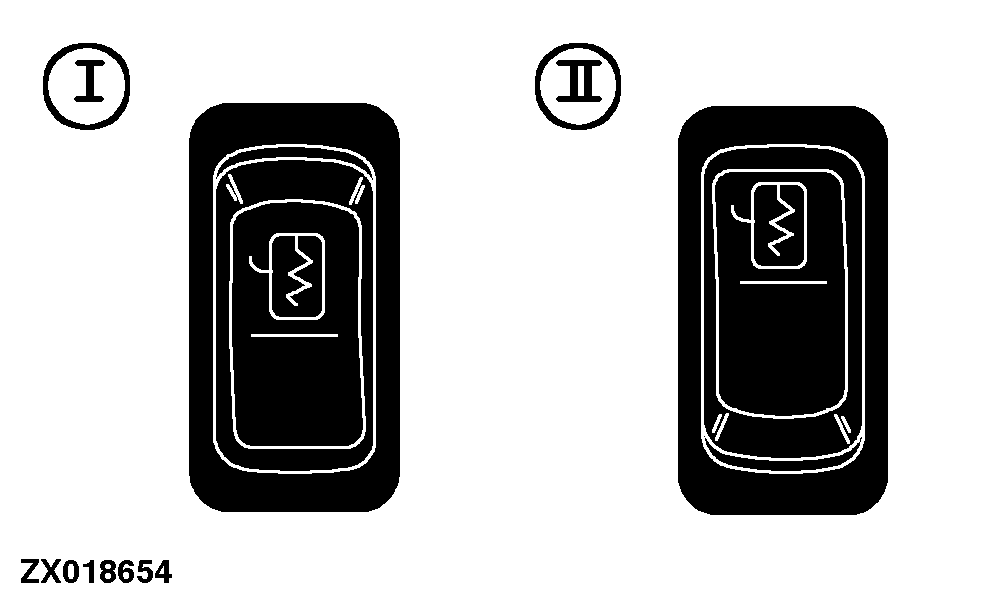

I-Mirror Heater, OFF
II-Mirror Heater, ON

OUO6075,0003A1B -19-22SEP04-1/1
