Cooling Compartment (Air Shut Off)

NOTE: To prevent air flow (from the heater/AC system) from entering cooling compartment, the bracket located on the side of the cooler will need to be reversed to stop air flow from entering the cooling compartment.

Remove cooling compartment from behind instructional seat.

Remove cap screw (A) and bracket (B) and install bracket (closed position) (D).

Retain bracket with previously removed cap screw.

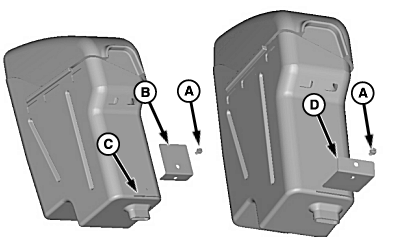

A-Cap Screw
B-Bracket (Open Air Position)
C-Groove
D-Bracket (Closed Position)

OUO6075,0003A1D -19-22SEP04-1/1
