Beacon/Hazard Lights

The three position Beacon/Hazard light switch controls all beacon lights, position lights and flashing warning lights.

When transporting on a roadway beacon lights give warning to other drivers. When stopped on a public road beacon lights, position lights and flashing warning lights give warning to other drivers.

causym CAUTION: Beacon lights must be turned ON when transporting on a public roadway.

Road traffic regulations in some countries require that the flashing warning lights be switched ON whenever the combine is stopped on the side of the road.

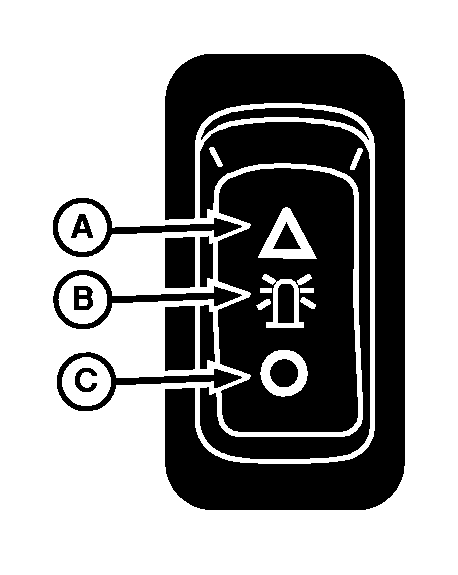

A-Flashing Warning, Position and Beacon Lights, ON
B-Beacon Lights, ON
C-Flashing Warning, Position and Beacon Lights, OFF

H69928
H78244

Front Position (White) and Warning/Turn Signal Lights (Amber)

H78250

Rear Position (Red) and Warning/Turn Signal Lights (Amber)

OUO6075,0003A2E -19-29SEP05-1/1
