Light Switches
NOTE:
Combine is equipped with exit lighting. Exit lights will remain on for a maximum of 90 seconds after key switch is turned OFF if the road or field lights were in use within the previous five minutes. The operator can choose to light the left-hand or right-hand side of the combine using the turn signal lever.
-
(A) Dimmer: Cornerpost backlighting.
-
(B) Beacon/Hazard: all beacons (beacons position); flashing warning lights with beacons (hazard position).
-
(C) Park/Road: Position lights (park position); head lights, beacons, tail lights, position lights (road position).
-
(D) Auto Beacon/Field: Grain tank light, auto beacon, unloading auger light, side finder lights, stubble lights (field position).
-
(E) Work: Stubble lights (middle position); stubble and rear discharge lights (top position).
|

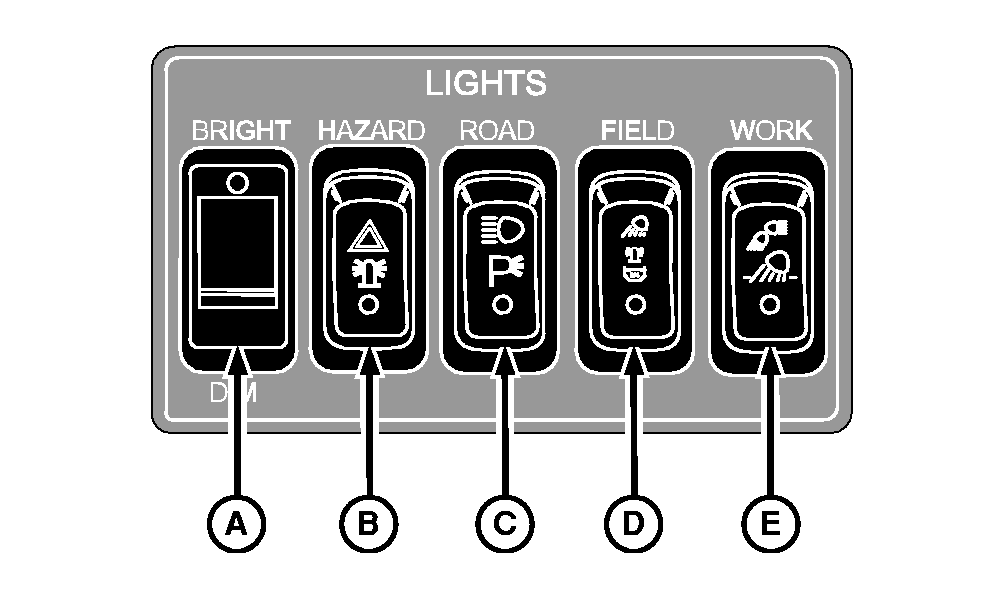

A-Dimmer Light Switch
B-Beacon/Hazard Light Switch
C-Park/Road Light Switch
D-Auto Beacon/Field Light Switch
E-Work Lights Switch
|
