Turn Signals

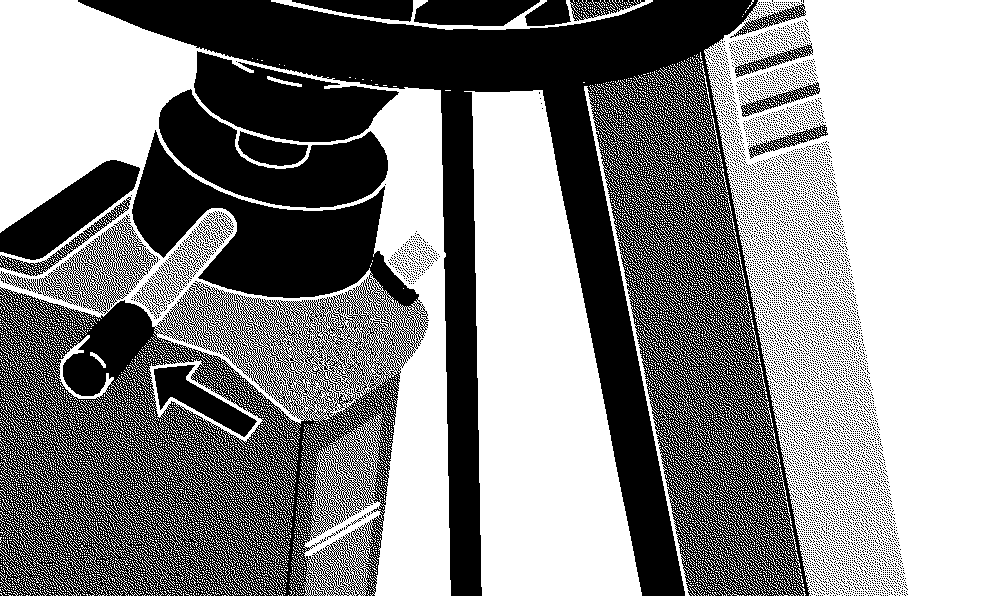

When operating combine on road or highway, use turn signals.

NOTE: Turn signals operate anytime the key switch is ON and Field light switch is OFF. When Field light switch is ON the turn signal lever operates the side finder lights. Turn signals are not self-cancelling, so lever must be move back to neutral position.

When turn signal lever is used and Park/Road light switch is in the Road position, turn signal indicator lights will flash at 85 flashes per minute and the indicator light on the steering column glows steadily.

NOTE: Indicator light on the steering column glows steadily and indicates a turn.

When Beacon/Hazard light switch is in the Hazard position, front and rear amber turn indicator lights will flash in unison at 85 flashes per minute.

OUO6075,0003A35 -19-24SEP04-1/1
