Feeder House Slip Clutch

causym CAUTION: Shut OFF engine, set parking brake and remove key.

The non-adjustable slip clutch protects the upper shaft, conveyor, and drive chains.

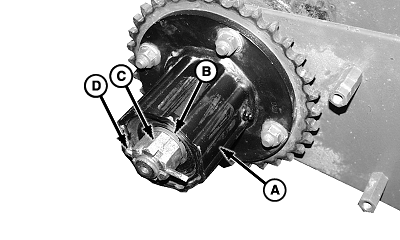

If slip clutch is removed, install clutch assembly (A), washer (B) and castle nut (C). Tighten castle nut to specification and install cotter pin (D).

Specification

Flange and Lock Nuts -Torque 353 N·m (260 lb-ft)

H74024

Shield and Drive Chain Removed for Clarity


A-Clutch
B-Washer
C-Castle Nut
D-Cotter Pin

OUO6075,0003A3F -19-27SEP04-1/1
