Gull Wing Doors

causym CAUTION: Shut OFF engine, set parking brake and remove key.

NOTE: Pinning and latch lever operation is the same on both sides of machine.

1. To open doors on either side of machine, remove spring clip, and pin (A) from locking plate (B). Reinstall spring clip onto pin.


A-Pin
B-Locking Plates

H81656

Left-Hand Front Corner Shown

H81657

OUO6075,0003A43 -19-27SEP04-1/3

2. Use wrench or screw drive to turn latch knob (A), then pull out on gull wing door to raise.


A-Latch Knob

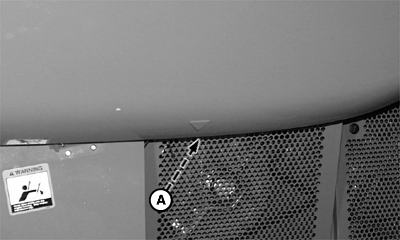

H75701

Right-Hand Door Latch

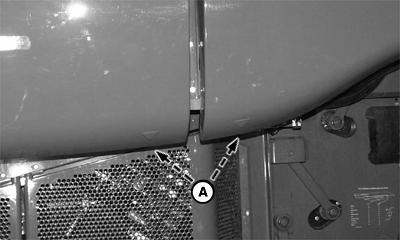

H75702

Left-Hand Door Latches

OUO6075,0003A43 -19-27SEP04-2/3

IMPORTANT: Do not use cylinders (A) as hand holds or hang anything on these cylinders. This could cause the cylinder rod to bend or break.

In cold weather or in high winds, these gull wing doors may "creep" down. Position stop on rod to hold shield up.


A-Cylinders

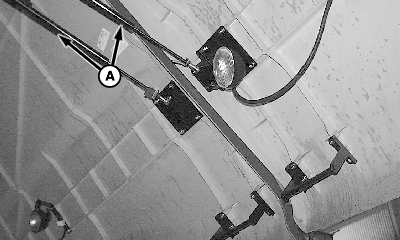

H76219

Left-hand Cylinder Stop Shown

OUO6075,0003A43 -19-27SEP04-3/3
