CAUTION: Shut OFF engine, set parking brake and remove key.

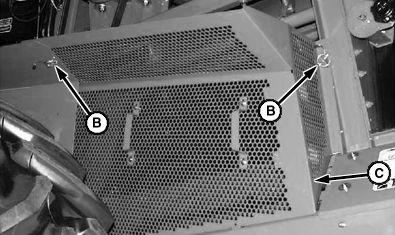

Remove front shield (A) by removing cap screw and lock nut (B). Lift and remove shield (C).

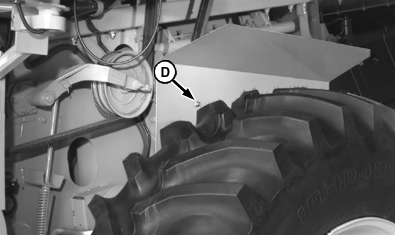

Remove shield completely by removing cap screw (D) and pull shield out of the support.
A-Front Shield B-Cap Screw and Lock Nut C-Shield D-Cap Screw
OUO6075,0003A46 -19-27SEP04-1/1
