Right-Hand Side Shields

CAUTION: Shut OFF engine, set parking brake and remove key.

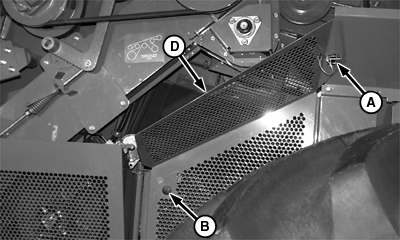

Remove cap screw and lock nut (A) to open rear shield (B) to service belts.

A-Cap Screw and Lock Nut
B-Rear Shield

OUO6075,0003A47 -19-27SEP04-1/2

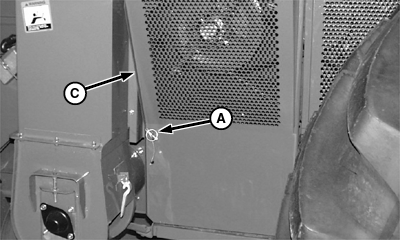

Remove cap screws and lock nuts (A) and turn lock (B) counterclockwise to unlock.

Lift and remove rear shield (C) and middle shield (D).

A-Cap Screws and Lock Nuts
B-Lock
C-Rear Shield
D-Middle Shield
