Right-Hand Side Front Shield

CAUTION: Shut OFF engine, set parking brake and remove key.

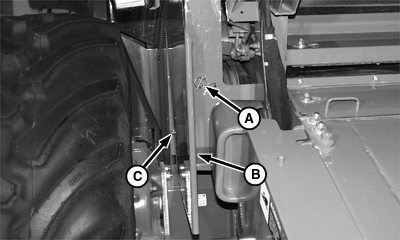

Remove cap screw and lock nut (A) and pull shield (B) forward.

To remove shield completely, remove cap screw (C) and lift to remove from lower support.

A-Cap Screw and Lock Nut
B-Shield
C-Cap Screw

OUO6075,0003A48 -19-27SEP04-1/1
