OMH222883: 9880i STS Combine(9880i STS 715701- ), Block File: OUO6075_0003A49_19

Feed Accelerator-Wing Replacement

causym CAUTION: Shut OFF engine, set parking brake and remove key.

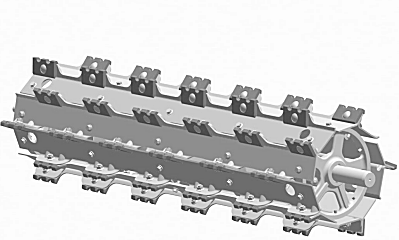

Feed accelerator wings and feed accelerator wear strips can be replaced without removing the feed accelerator. Replace accelerator wings in sets of two and opposite of each other on the accelerator to maintain proper balance.

NOTE: If accelerator is removed from combine, or has been serviced, tighten clamp bolts before securing wings. Tighten cap screws to specification.

Remove round head bolts (A) and replace feed accelerator wear strips as required. Tighten round head bolts to specification.

Specification

Feed Accelerator Wear Strip Round Head Bolts -Torque

95 N·m

(70 lb-ft)

Remove cap screws (C) and replace feed accelerator wings (D) as required. Tighten cap screws to specification.

Specification

Feed Accelerator Wing Cap Screws -Torque

70 N·m

(52 lb-ft)

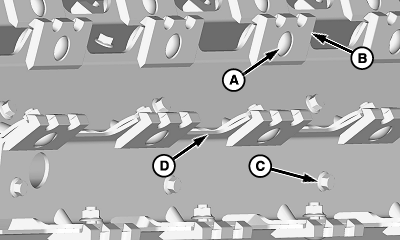

A-Round Head Bolt
B-Feed Accelerator Wear Strip
C-Cap Screw
D-Feed Accelerator Wings

OUO6075,0003A49 -19-03NOV04-1/1
