Feed Accelerator Belt (High Speed High Capacity)-Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

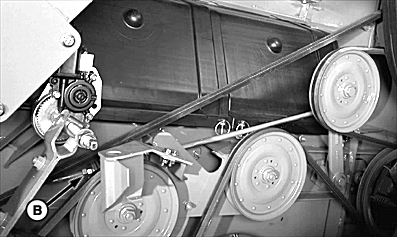

Remove tension on front jackshaft belt idler (A). Remove tension on shoe, fan and conveyor auger belt idler (B).

Remove both belts from countershaft sheaves to allow removal of feed accelerator belt.

A-Front Jackshaft Belt Idler
B-Auger Belt Idler

OUO6075,0003A4A -19-27SEP04-1/3

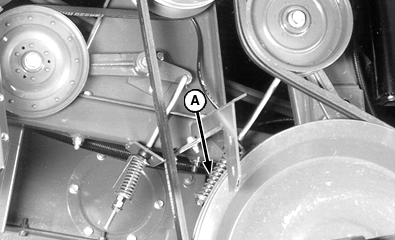

Remove belt tension from accelerator belt by pushing lever (A) up and out from notch in bracket (B).

A-Lever
B-Bracket

OUO6075,0003A4A -19-27SEP04-2/3

Remove cap screws (A) and sheave (B).

Remove feed accelerator belt (C).

Install new belt.

Install sheave and secure with cap screws.

Push lever up and into notch in bracket. Adjust belt idler tension until spring aligns with end of gauge.

Install shoe, fan and conveyor auger belt and front jackshaft belt. Adjust tension rod for each belt until washer aligns with end of gauge.

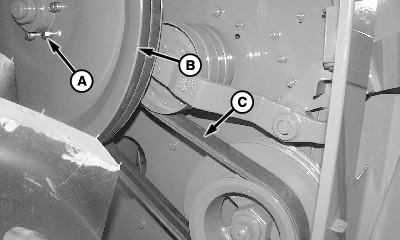

A-Cap Screws (6 Used)
B-Sheave
C-Feed Accelerator Belt

OUO6075,0003A4A -19-27SEP04-3/3
