Chaffer/Sieve Elements-Removing

causym CAUTION: Shut OFF engine, set parking brake and remove key to help prevent accidental starting and personal injury.

NOTE: It is not necessary to remove the straw chopper to remove chaffer/sieve elements. Chopper must be in fully raised position.

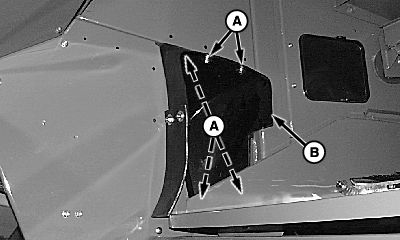

1. Remove cap screws (A) and air chutes (B) from both sides.

H76071


A-Cap Screws
B-Air Chute

OUO6075,0003A4E -19-27SEP04-1/5

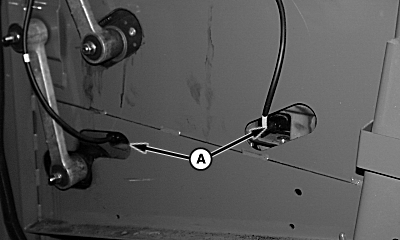

2. Disconnect electrical harness (A).


A-Chaffer/Sieve Harness

H69954

OUO6075,0003A4E -19-27SEP04-2/5

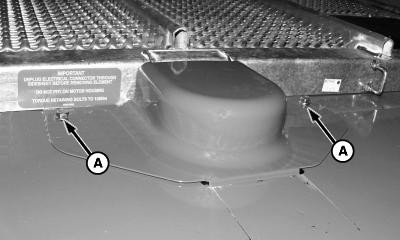

3. Remove cap screws (A) and cover to access chaffer motor.


A-Cap Screws

H75897

OUO6075,0003A4E -19-27SEP04-3/5

NOTE: Chaffer motor does not have to be removed.

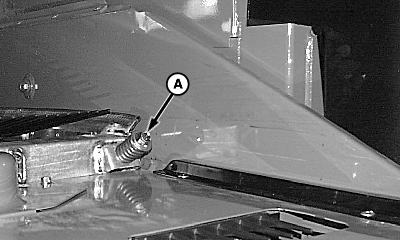

4. Remove cap screws (A) (both sides) and chaffer.


A-Chaffer Bolt

H76684

OUO6075,0003A4E -19-27SEP04-4/5

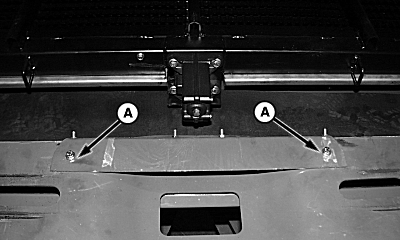

5. Remove cap screws (A) and shield.

6. Sieve removal is similar to chaffer procedure.

7. Install in reverse order.


A-Cap Screws

H69955

OUO6075,0003A4E -19-27SEP04-5/5
