Clean Grain Elevator Top Access Doors for Drives

CAUTION: Shut OFF engine, set parking brake and remove key.

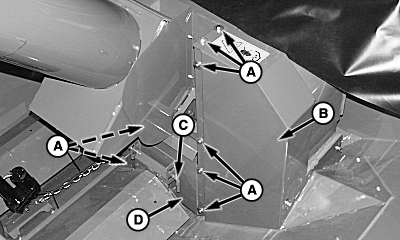

Remove cap screws (A) from door (B).

Remove cross auger pin (C) and door (D).

A-Cap Screws
B-Cover

OUO6075,0003A4F -19-27SEP04-1/1
