Chopper Belt-Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

Remove tension on discharge beater drive belt idler (A). Remove beater belt (B) from chopper drive jackshaft sheave to allow removal of chopper belt.

A-Drive Belt Idler
B-Beater Belt

OUO6075,0003A59 -19-29SEP04-1/4

Pull arm (A) down, outward and up to release belt tension.

Install rubber strap (B) in slot to hold arm in detensioned belt position.

A-Arm
B-Rubber Strap

OUO6075,0003A59 -19-29SEP04-2/4

Release latch (A) and lift shield (B) over pins (C).

Remove pin (D) from shield (E) and remove shield from bracket (F).

A-Latch
B-Shield
C-Pins
D-Quick-Lock Pin
E-Shield
F-Bracket

OUO6075,0003A59 -19-29SEP04-3/4

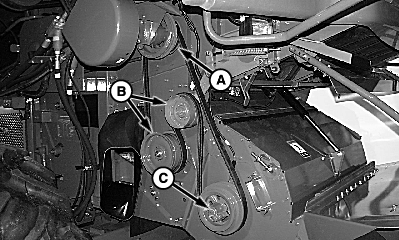

Remove belt from sheave (A), idlers (B) and sheave (C).

Install new belt.

Remove rubber strap from arm, and move arm down and into slot to add belt tension.

Adjust belt idler tension spring until washer aligns with end of gauge.

Reinstall shields and discharge beater belt. Adjust discharge beater drive belt idler tensioner until spring aligns with end of gauge.

A-Sheave
B-Idlers
C-Sheave

OUO6075,0003A59 -19-29SEP04-4/4
