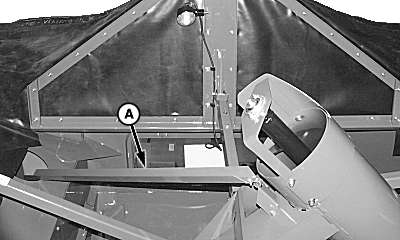

Grain Tank Sample TroughGrain tank sample trough (A) allows the operator to take a sample of the harvested crop from the clean grain loading auger without entering the grain tank. With combine full of harvested crop, bring multifunction control handle to neutral and stop. Apply parking brake before leaving cab. Disengage header, but leave separator engaged.

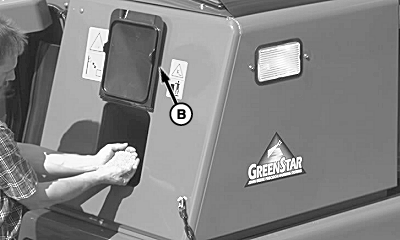

Raise access door (B). Lower end of grain tank sample trough will spill off a sample of the harvested crop.
|
|
CAUTION:
Do not have a second person check for a grain tank sample.
OUO6075,0003A5E -19-30SEP04-1/1 |
