Grain Tank Fill Sensors-Adjusting

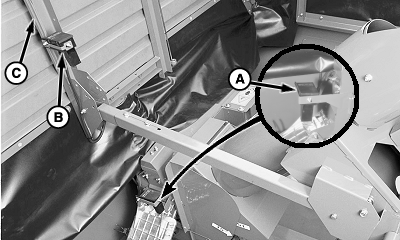

NOTE: Header drive must be engaged for buzzer to sound. Grain Tank 3/4 Full Sensor: Grain tank 3/4 full sensor (A) is located on the front right-hand side of clean grain loading auger. Green indicator warning light will come ON in the overhead warning display panel and a buzzer will sound indicating the grain level has reached the sensor "trip" point. Buzzer will sound until the grain is below the sensor "trip" point. NOTE: When green indicator light comes ON a delay of two seconds will occur before the buzzer sounds. Grain tank 3/4 full sensor is not adjustable. Grain Tank Full Sensor: Grain tank full sensor (B) is located on the right-hand grain tank cover above the clean grain loading auger. Green indicator warning light will come ON in the overhead warning display panel and a buzzer will sound indicating the grain level has reached the sensor "trip" point. Buzzer will sound until the grain is below the sensor "trip" point. NOTE: When grain tank full sensor, is moved higher in slot (C) the higher the grain will be at the time the buzzer sounds. If higher grain tank fill is desired, mounting bracket can be reversed. |
|
CAUTION:
Shut OFF engine, set parking brake and remove key.
OUO6075,0003A5F -19-30SEP04-1/1 |
