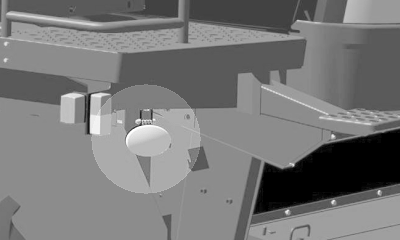

Rear Discharge Light, Auxiliary Field Light, Access Door Work Light, Grain Tank and Unloading Auger Light and Stubble Light Bulb-Replacement

NOTE: (For important safety information regarding halogen bulbs, see Safety Rules When Replacing Halogen Bulbs in this section before performing this procedure.

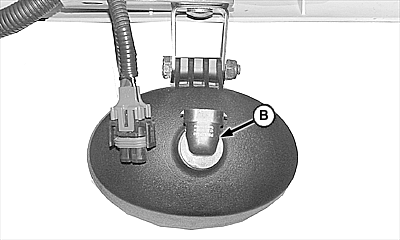

2. Turn bulb assembly (B) counterclockwise and remove.

3. Install bulb assembly in reverse order.

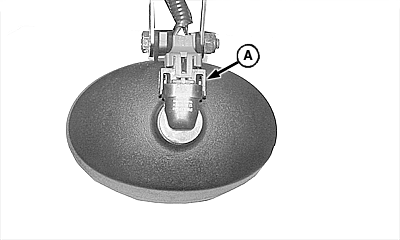

A-Connector
B-Bulb Assembly

OUO6075,0003A63 -19-30SEP04-1/1
