Start Switch

causym CAUTION: Sound horn before starting engine to clear people away from combine.

To avoid possibility of personal injury or death, start engine ONLY from operator's seat. Do not start engine by shorting across starter terminals. Combine will start in gear if normal circuit is bypassed.

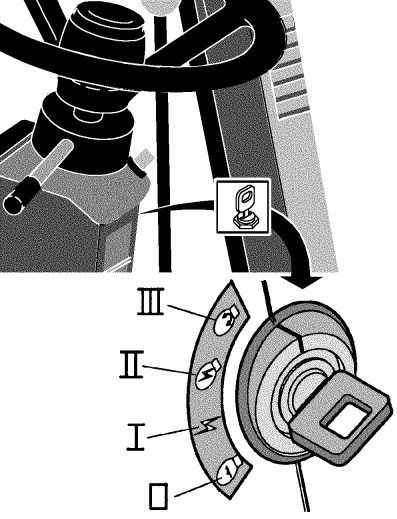

Start switch is located on right side of steering column. Key positions are:

First Position (O) ...OFF
Second Position (I) ...Accessories
Third Position (II) ...Accessories and Run
Fourth Position (III) ...Start



Turn key to the fourth position to start. All lights on overhead warning display panel will come ON.

When released, the key will return to run or third position.

    If engine will not crank, check for:

  • Multifunction control handle in neutral position
  • Separator Disengaged
  • Header Disengaged
  • Auger swing switch in neutral
  • Unloading auger disengaged

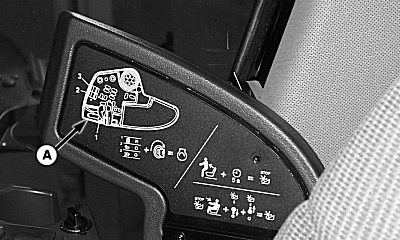

Decal (A) on armrest storage box lid shows engine starting information.
