Stopping the Engine

1. Lower header or reel to ground. If equipped with optional reel fore/aft, move reel all the way forward.

2. Move multifunction control handle (A) to neutral, disengage header switch (B) and separator switch (C).

IMPORTANT: Cooling of turbocharger and some engine parts is provided by engine oil. Stopping a hot engine might cause damage to these parts.

3. Before stopping an engine that was operating at working load, idle engine at least two to three minutes to allow turbocharger to cool.

causym CAUTION: Remove key switch and set parking brake before leaving combine.

4. Turn key switch and all other switches OFF.

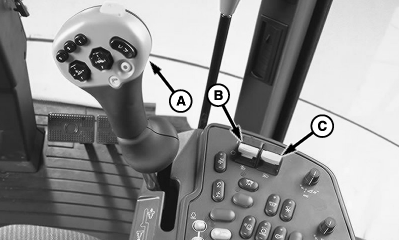

H81650


A-Multifunction Control Handle
B-Header Switch
C-Separator Switch

OUO6075,0003A70 -19-04OCT04-1/1
