Semi-Automatic Trailer Hitch- Attaching (Standard)

CAUTION: Shut OFF engine, set parking brake and remove key before hooking up trailer.

Raise chopper until pins lock into position.

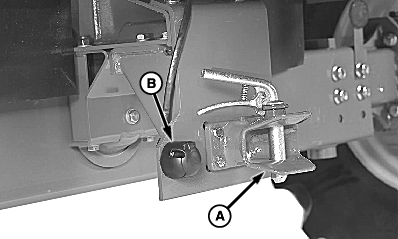

Attach trailer to hitch (A) and secure with trailer hitch pin.

Connect trailer electrical harness to electrical connector (B).

A-Hitch
B-Electrical Connector

OUO6075,0003A78 -19-01NOV04-1/1
