AutoMatic Rear Trailer Hitch-Attaching (Optional)

CAUTION: Shut OFF engine, set parking brake and remove key before hooking up trailer.

Raise chopper until pins lock into position.

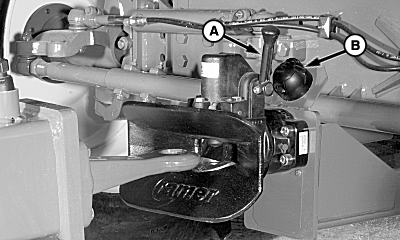

Raise handle (A) to open lock pin and attach trailer to combine. When trailer hitch aligns with lock pin, handle will lower and automatically lock trailer hitch in place.

Connect trailer electrical harness to electrical connector (B).

A-Handle
B-Electrical Connector
