Shifting Feeder House Reverser and Reel Reverser

IMPORTANT: Allow header to come to a complete stop before shifting feeder house reverser.

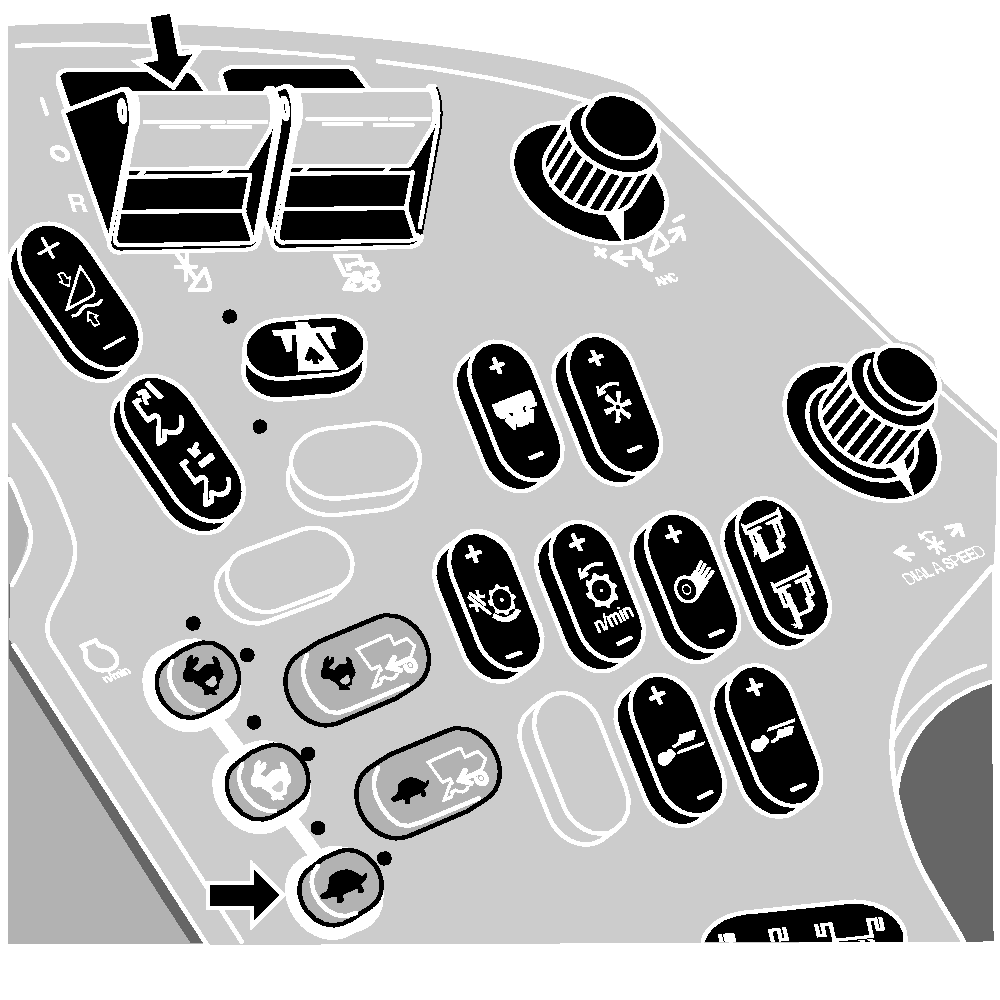

Turn header engage switch OFF and throttle engine to low idle.

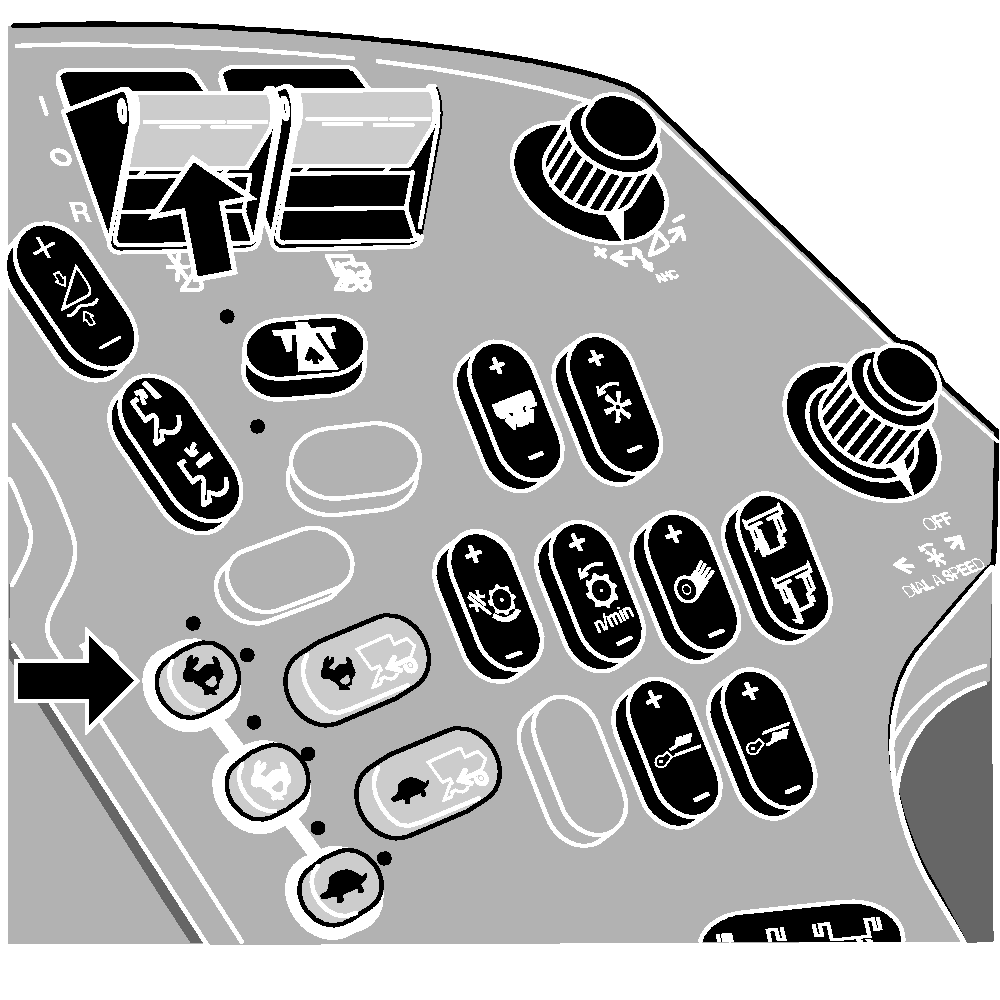

Push down, pull back and hold feeder house reverser switch until feeder house is clear of plugging. Release switch once feeder house is clear of "slug".

Throttle engine to high idle and resume harvesting.

IMPORTANT: During reverser operation, never attempt to force "slugs" through combine by repeated cycling of reverser drive. Repeated cycling shortens life of components.

OUO6075,0003AAB -19-07OCT04-1/1
