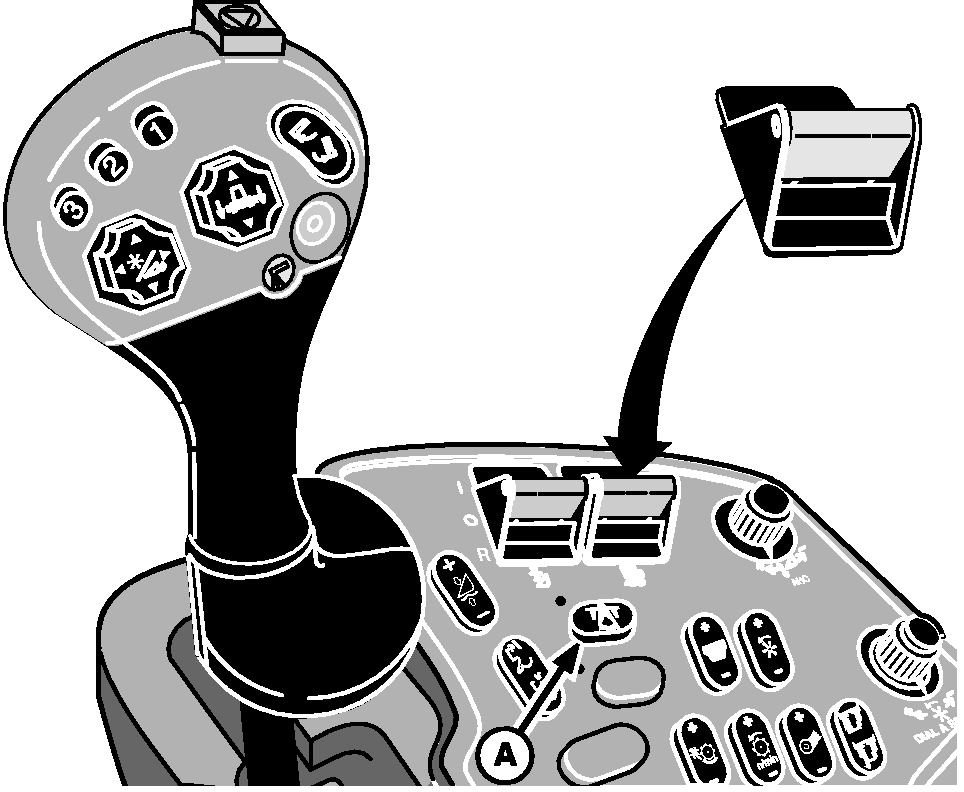

Separator Engage Switch (Yellow)

NOTE: Engage separator prior to engaging header.

Separator engage switch allows the separator to be turned ON or OFF.

Road transport disconnect switch (A) must be in field position for this function to work.

Separator engage switch must be OFF to start combine.

Push down and forward to lock switch in the ON position. Pull switch back to turn OFF.

Single tine separator drive speed adjust and cleaning fan speed adjust systems only work when the separator is running.

NOTE: Separator disengages if discharge beater speed drops below 300 rpm.

A-Road Transport Disconnect Switch

OUO6075,0003AAC -19-07OCT04-1/1
