Road Transport Disconnect Switch (Black)

Road transport disconnect switch (A) must be in the road position when transporting the combine on the road.

When road transport disconnect switch is pressed, indicator light (B) will turn ON indicating switch is in road position. Pressing road transport disconnect switch will prevent the following functions:

• HEADERTRAK Control Functions
• Reel raise/lower and Reel fore/aft
• Unloading auger
• Auger swing
• Separator engage
• Header engage
• Header raise and lower
• Grain tank cover raise and lower

To re-engage functions for field operation, press the road transport disconnect switch, indicator light will turn OFF and select the desired function switch.

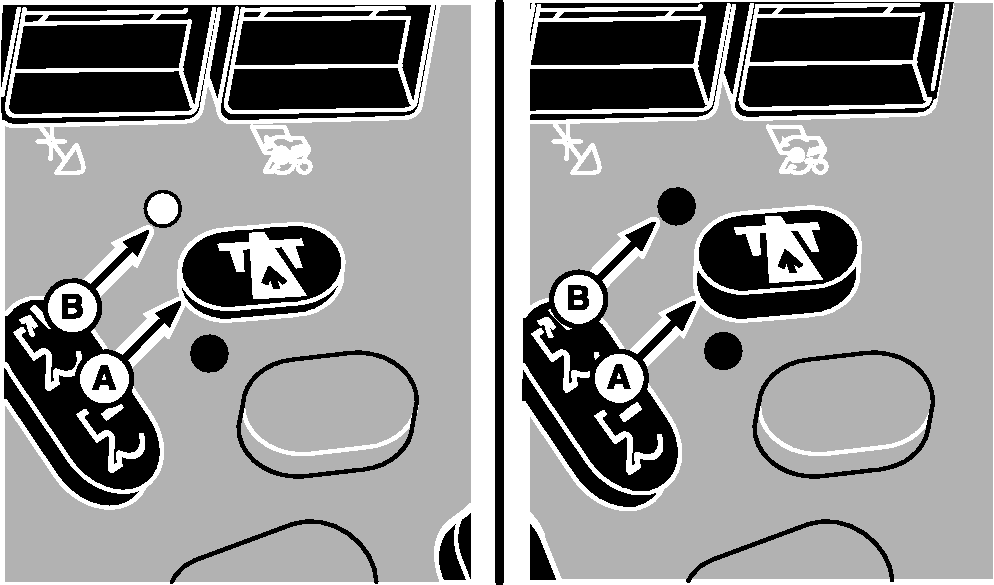

A-Road Transport Disconnect Switch
B-Indicator Light
