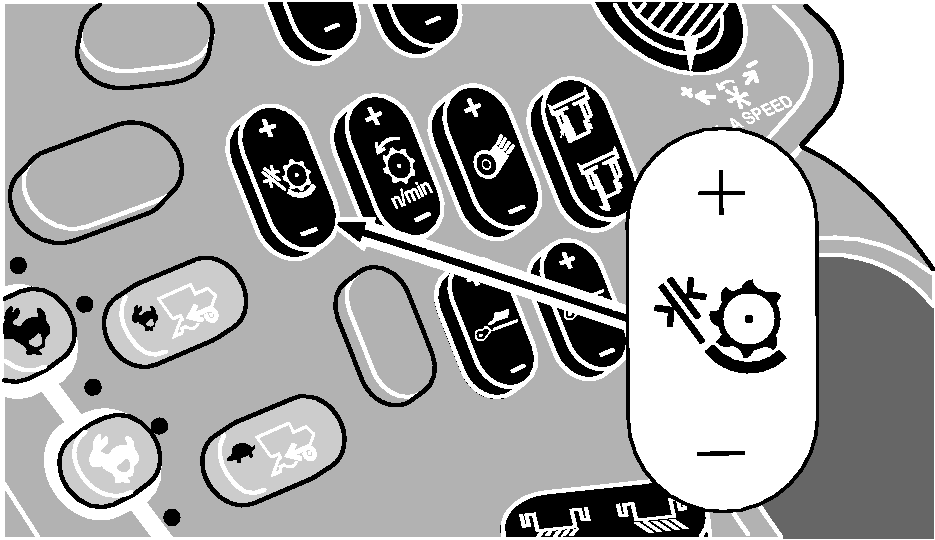

Concave Clearance Switch (Black)

NOTE: When opening concave, go past set point then retract (close) concave to remove slack in linkage. This will prevent the concave from opening further then desired when crop material enters the machine.

To increase concave clearance, press and hold (+) symbol or press and hold (-) symbol to decrease concave clearance.

OUO6075,0003AB3 -19-07OCT04-1/1
