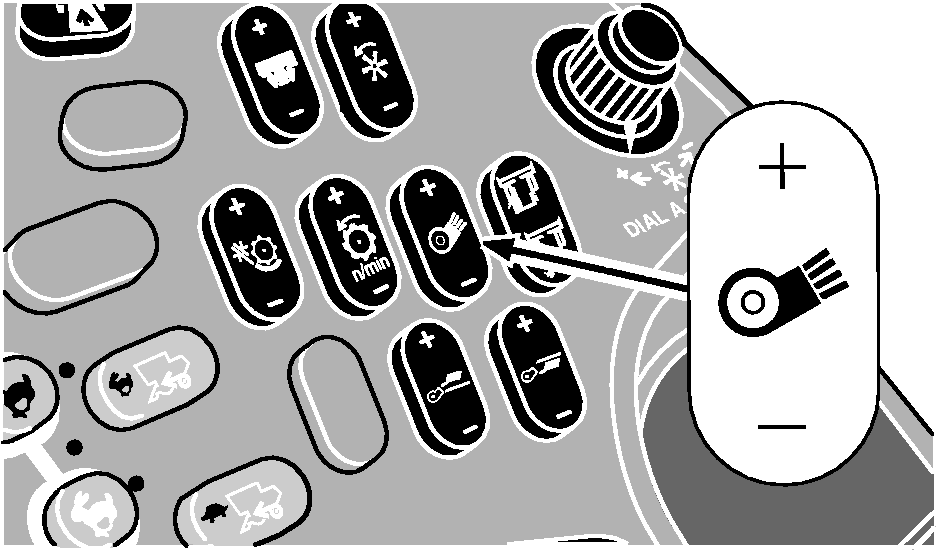

Cleaning Fan Switch (Black)

Cleaning fan switch controls the fan speed. Separator must be engaged to adjust fan speed.

To increase cleaning fan speed, press and hold (+) symbol or press and hold (-) symbol to decrease cleaning fan speed.

Fan speed motor has a thermal (heat) shut off that stops the motor from working if any of the following happen:

• Switch is used continuously for more than two or three minutes
• Adjustment system is against the stop while the motor is still trying to change speed
• Excessive binding or dragging in the linkage

If any of the above causes are suspected, clean and adjust the system as necessary.

Allow 10 to 15 minutes for the motor to cool, then try the switch again.
