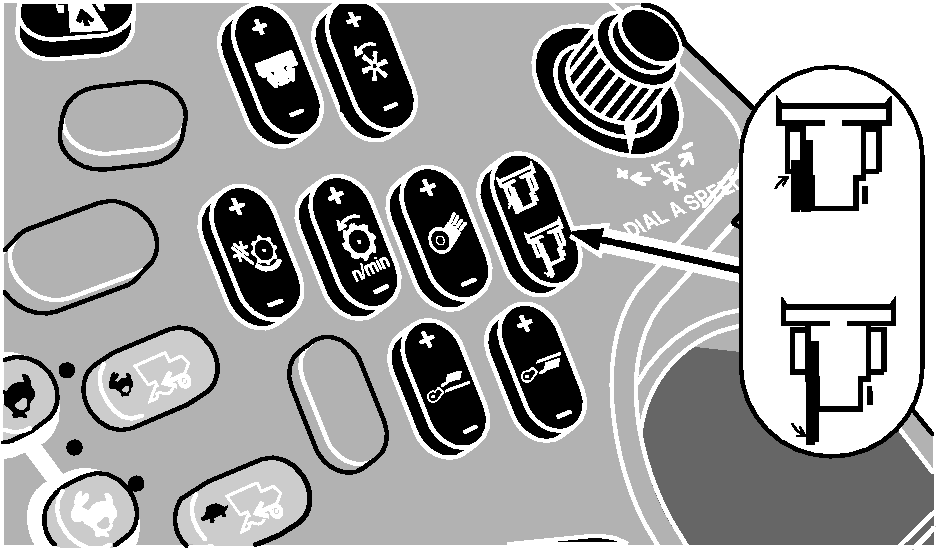

Power Folding Auger Switch (Black)

NOTE: Verify unloading auger is unfolded fully before engaging. When unloading auger is not used, it is recommended that it be swung back and folded to the transport position.

Power folding auger switch controls the swing of the unloading auger. Press and hold bottom of switch to extend the short portion of the unloading auger or press and hold top of switch to retract the short portion of the unloading auger.

OUO6075,0003AB6 -19-16AUG05-1/1
