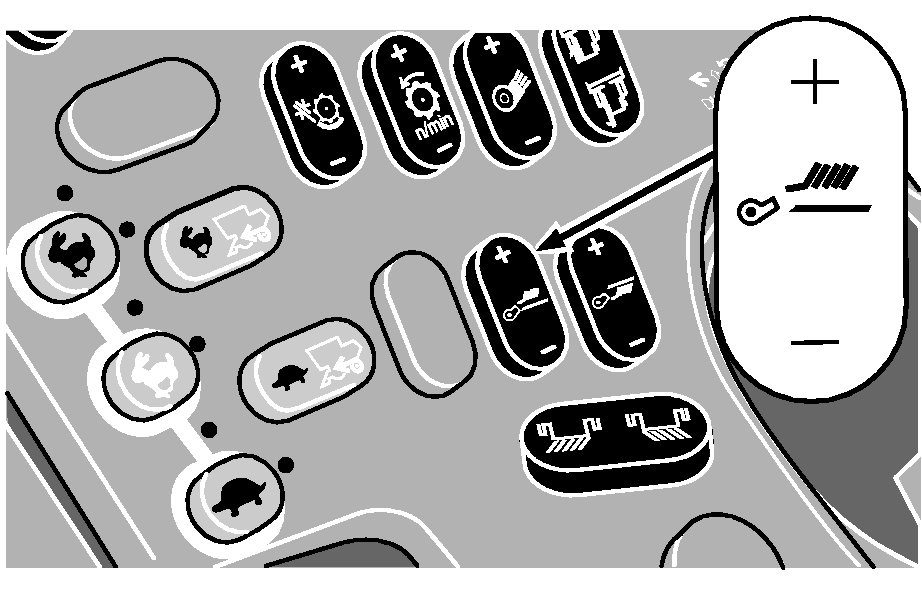

Chaffer Adjust Switch (Black)

NOTE: Key switch must be ON to adjust chaffer clearance.

Chaffer adjust switch allows the operator to adjust the chaffer clearance from inside the cab. To increase clearance, press and hold (+) symbol or press and hold (-) symbol to decrease clearance.

H81568

OUO6075,0003AB7 -19-07OCT04-1/1
