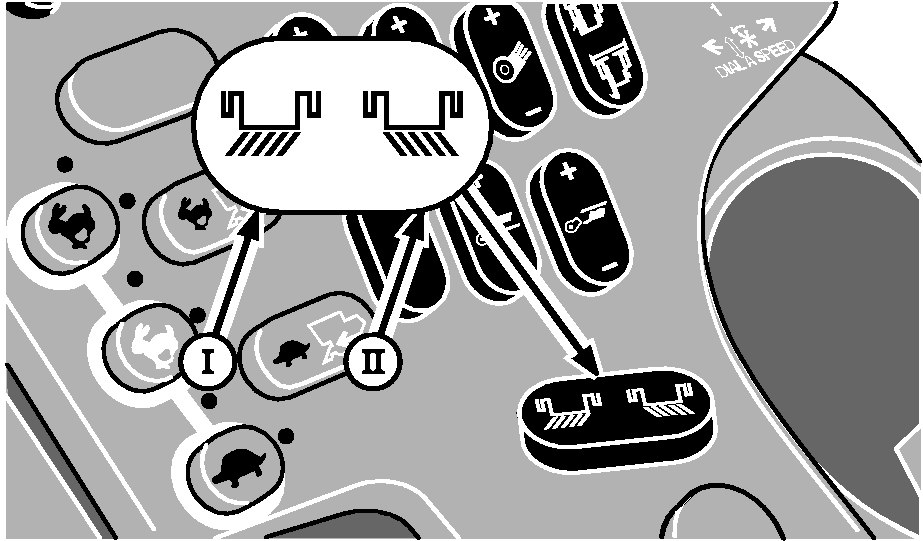

Chopper Vane Adjust Switch (Black)

NOTE: Key switch must be ON to adjust chopper vanes.

Chopper vane adjust switch allows the operator to adjust the direction of the chopper vanes from inside the cab.

Push symbol (I) to adjust chopper vanes to the left or push symbol (II) to adjust chopper vanes to the right. Push and hold symbol (I) for two seconds to adjust chopper vanes to full left position. Press and hold symbol (II) to adjust chopper vanes to full right position.

I-Chopper Vane Adjust Left
II-Chopper Vane Adjust Right

OUO6075,0003AB9 -19-07OCT04-1/1
