Multifunction Control Handle-Adjustment

IMPORTANT: If hydrostatic charge pressure warning light comes ON in the overhead warning display panel when multifunction control handle is moved, check hydraulic oil level or replace filter. See your John Deere dealer if the problem is not corrected.

Move multifunction control handle forward to travel forward or slightly to the right and rearward for reverse travel.

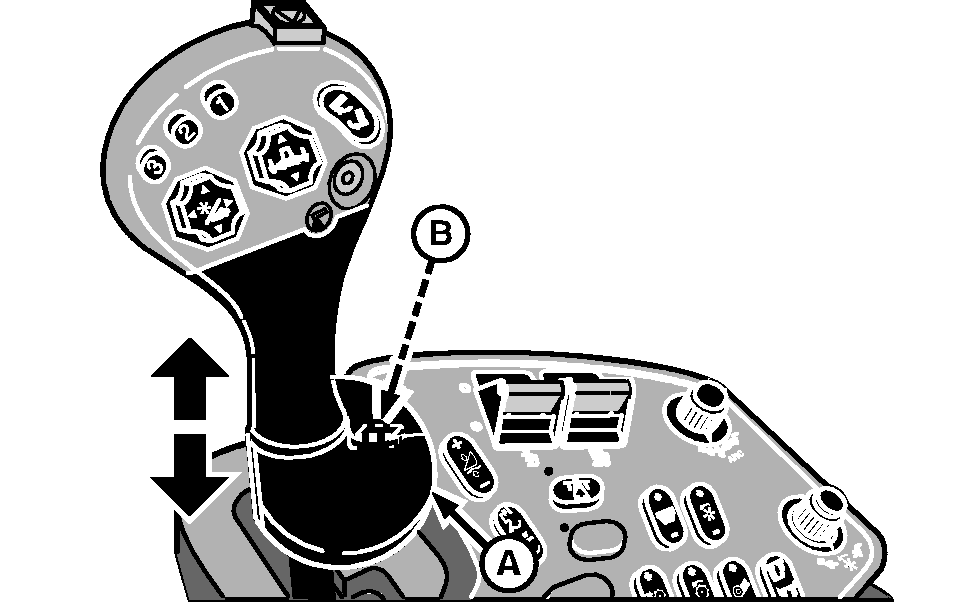

Palm rest (A) is adjustable with three detented positions. To raise or lower palm rest, pull lever (B) under palm rest, adjust palm rest to desired position and release lever.

A-Palm Rest
B-Lever

OUO6075,0003AC0 -19-07OCT04-1/1
