Quick Stop Switch (Yellow)

IMPORTANT: Header drive can be disengaged by this switch in case of malfunctions.

Quick stop switch (A) shuts OFF header engage switch (B), unloading auger drive switch (C) and unloading auger swing switch (D) at the same time. Press switch once to stop these drives simultaneously.

Unloading auger drive can be restarted by pushing unloading auger drive switch on multifunction control handle. To re-engage header drive, turn header switch OFF and back ON.

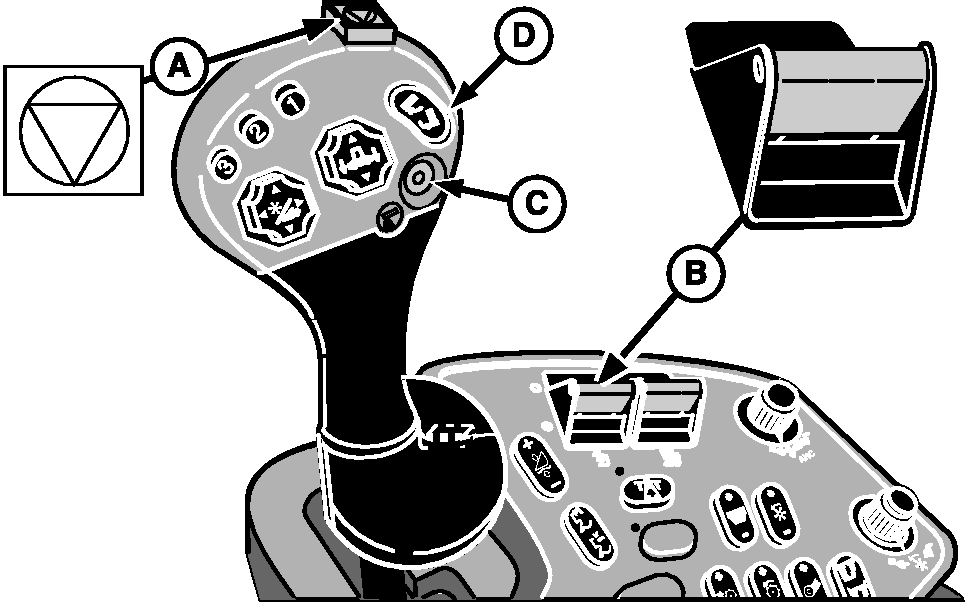

H81576


A-Quick Stop Switch
B-Header Engage Switch
C-Unloading Auger Drive Button
D-Unloading Auger Swing Switch
