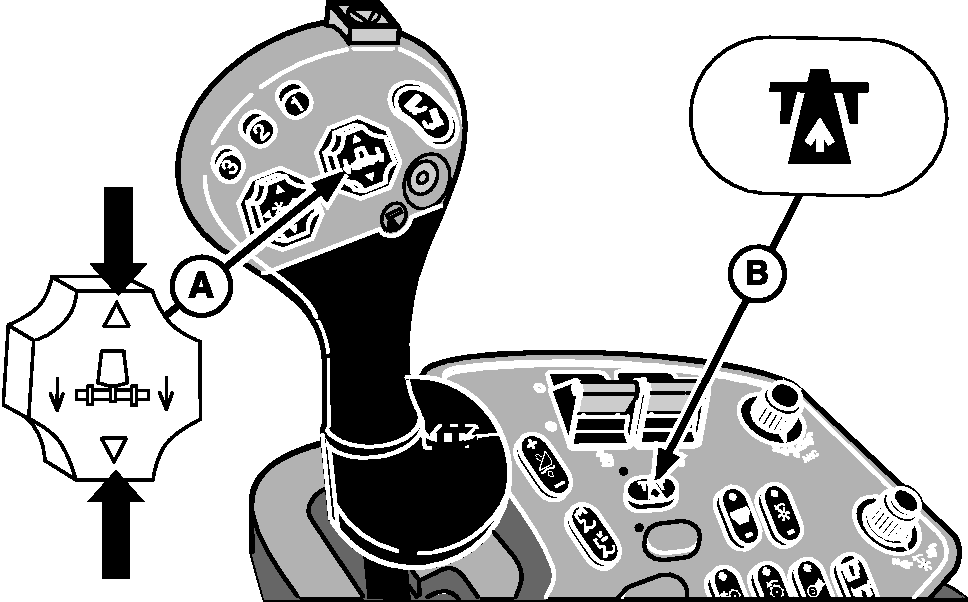

Header Lift Switch (Black)NOTE: Header lift switch has two detent positions. Pushing part way in on header lift switch will cause header to slowly raise/lower. Pushing all the way in will cause header to raise/lower at a faster rate. To raise or lower header with switch (A), road transport disconnect switch (B) must be in field position. Press and hold top of switch to raise header or press and hold bottom of switch to lower header. |
|
OUO6075,0003AC4 -19-07OCT04-1/1 |
