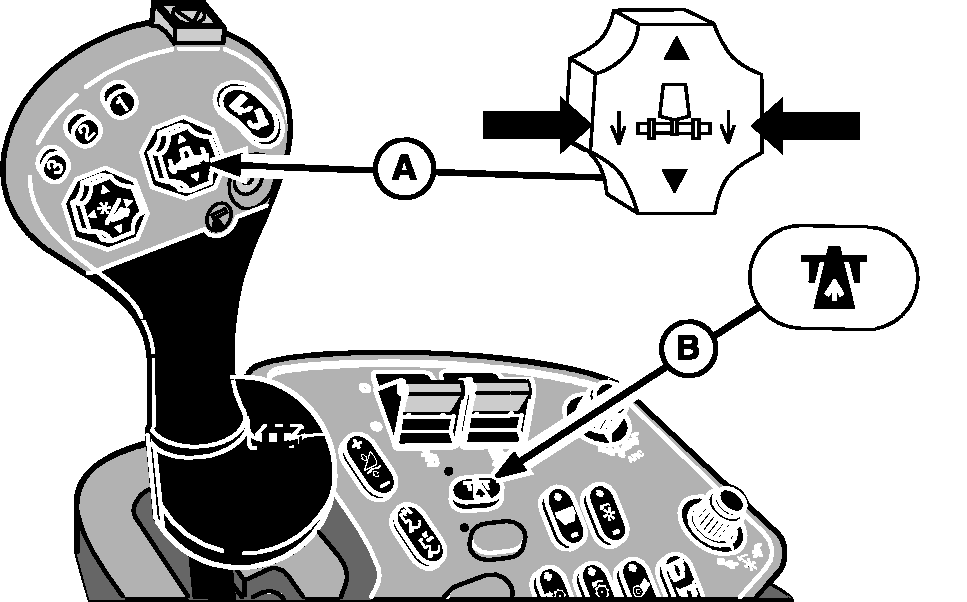

HEADERTRAK Lateral Tilt Manual Adjust Switch (Black)To manually operate HEADERTRAK lateral tilt switch (A), road transport disconnect switch (B) must be in field position. Press and hold right side of switch to tilt feeder house to the right or press and hold left side of switch to tilt feeder house to the left.
|
|
OUO6075,0003AC5 -19-07OCT04-1/1 |
