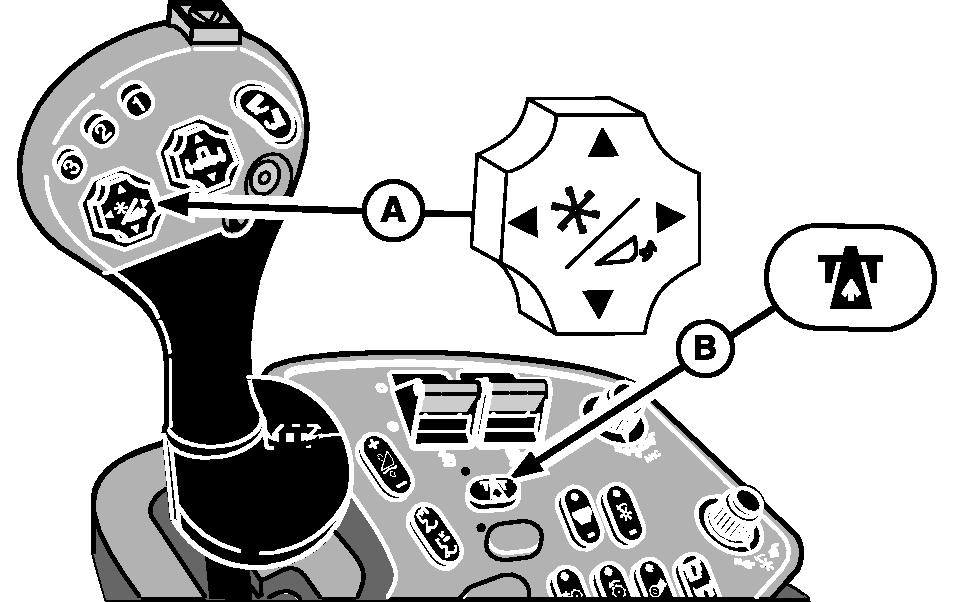

Reel Lift/Reel Fore and Aft Switch (Black)Reel position switch (A) controls the position of the reel. To adjust the reel position, road transport disconnect switch (B) must be in field position. Push and hold top of switch to raise reel or press and hold bottom of switch to lower reel. Push and hold left side of switch to move reel forward or press and hold right side of switch to move reel rearward. If corn head is equipped with adjustable decks plates, pressing the reel fore switch will increase deck plate spacing and pressing the reel aft switch will decrease deck plate spacing. If HEADERTRAK control or automatic auger swing are operating when this switch is used, reel response may vary. |
|
