Header Width Calibration

NOTE: On corn heads the display format is number of rows on the second line and row spacing on the third line. Row spacing units are mm for the metric system and inches for the English system. On cutting platforms the format is header width on the third line. Units are meters for the metric system and feet for the English system.

Press diagnostic button. dIA will be displayed.

ZX018729

OUO6075,0003ACA -19-07OCT04-1/5

Press calibration button. CAL and ACF will be displayed.

H73140

OUO6075,0003ACA -19-07OCT04-2/5

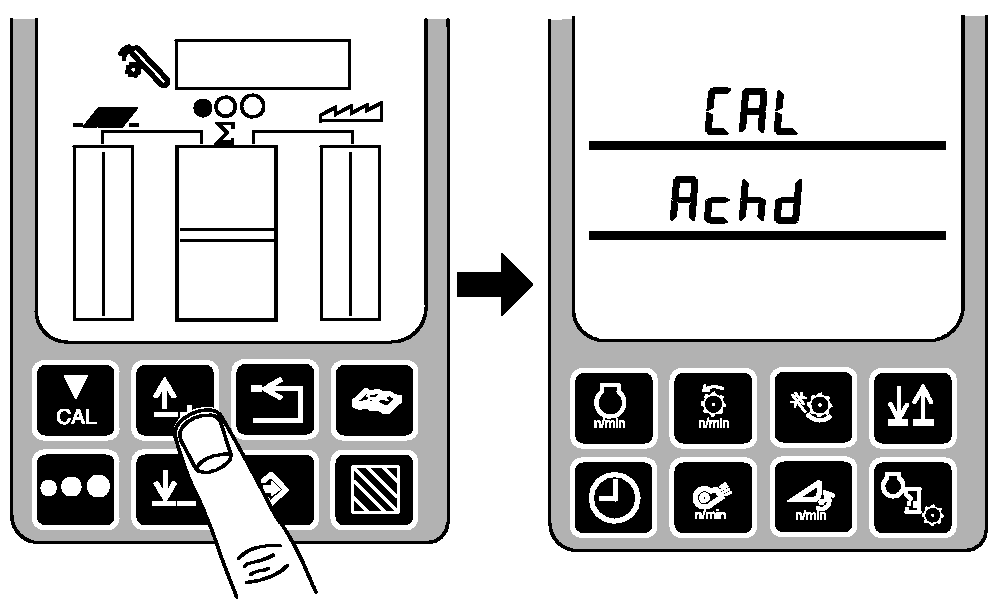

Press up or down arrow button to access the hdr calibration mode. CAL and Achd will be displayed.

H73731

OUO6075,0003ACA -19-07OCT04-3/5

Press enter button.

Input the desired value:

  • First available number value will flash (on middle or lower line depending on header type).
  • Input for cutting platforms - meters for the metric system and feet for the English system.
  • Input for corn head spacing - mm for the metric system and inches for the English system.
  • Input for corn head - number of rows.
  • Press up arrow and down arrow button to increase or decrease value of flashing digit.
  • When desired value is flashing, press calibrate button to move to next flashing digit.
  • Continue changing values one digit at a time until desired value is shown.
  • Press enter button to enter the new value into memory.
ZX018990

OUO6075,0003ACA -19-07OCT04-4/5

Return to normal operation:

  • Press back arrow button to return to normal operation.
  • Turn key switch OFF.
  • The next time the machine is started, this calibration information will be used by the combine.
ZX018740

OUO6075,0003ACA -19-07OCT04-5/5
