HEADERTRAK Lateral Tilt Angle Sensor Calibration

HEADERTRAK calibration procedure must be performed before initial use or when the HEADERTRAK sensor is replaced or when the display is not accurate. This procedure calibrates the lateral tilt angle sensors.

Prepare Machine For Calibration:

  • Attach header to combine and connect header harness
  • Make sure HEADERTRAK angle sensor is operating
  • Start combine and raise header completely

OUO6075,0003ACB -19-07OCT04-1/12

Press diagnostic button. dIA will be displayed.

ZX018729

OUO6075,0003ACB -19-07OCT04-2/12

Press calibration button. CAL and ACF will be displayed.

H73140

OUO6075,0003ACB -19-07OCT04-3/12

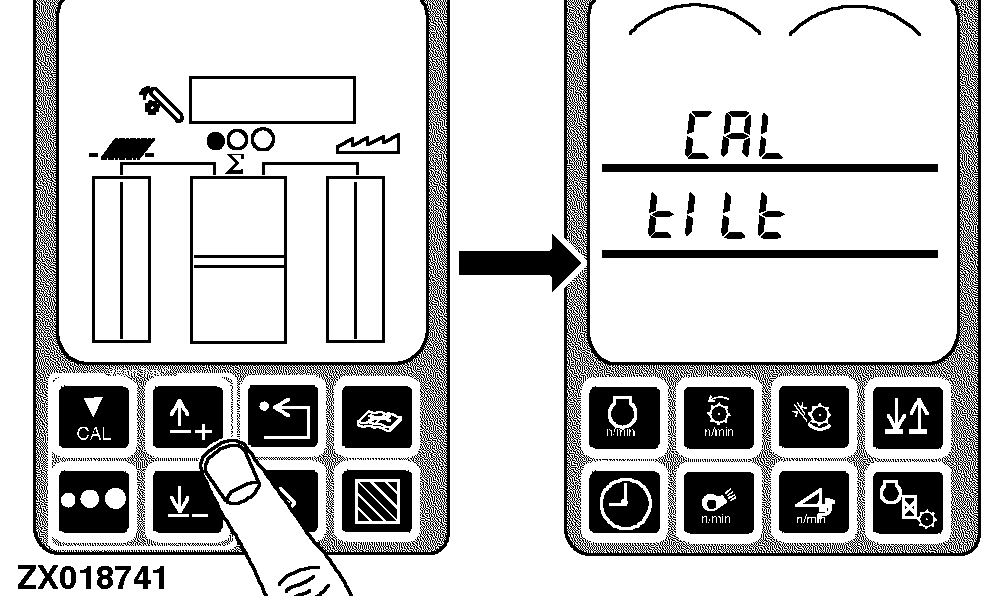

Press up or down arrow button to access tilt calibration mode. CAL and tiLt will be displayed.

ZX018741

OUO6075,0003ACB -19-07OCT04-4/12

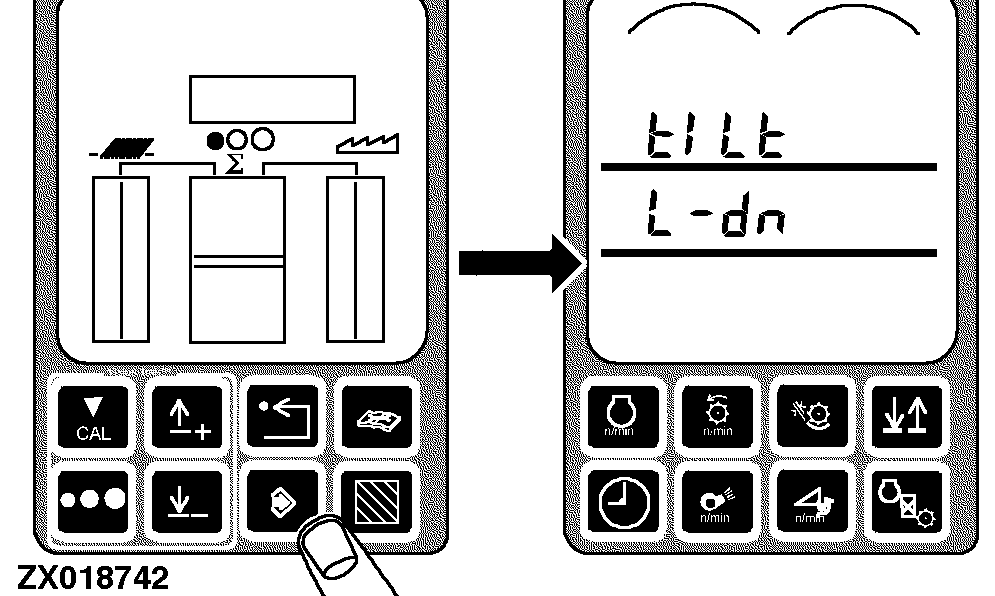

Press enter button. tiLt and L - dn will be displayed.

ZX018742

OUO6075,0003ACB -19-07OCT04-5/12

To establish left tilt sensor setting:

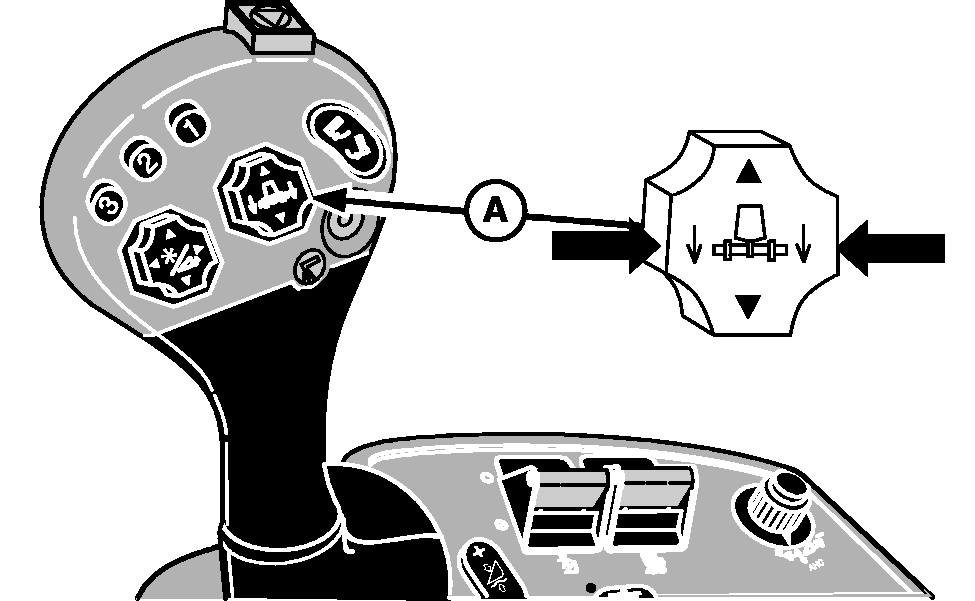

Press and hold left side of HEADERTRAK lateral tilt switch (A) until feeder house rotates completely left. This establishes left tilt sensor setting.


A-HEADERTRAK Lateral Tilt Switch

H78203

OUO6075,0003ACB -19-07OCT04-6/12

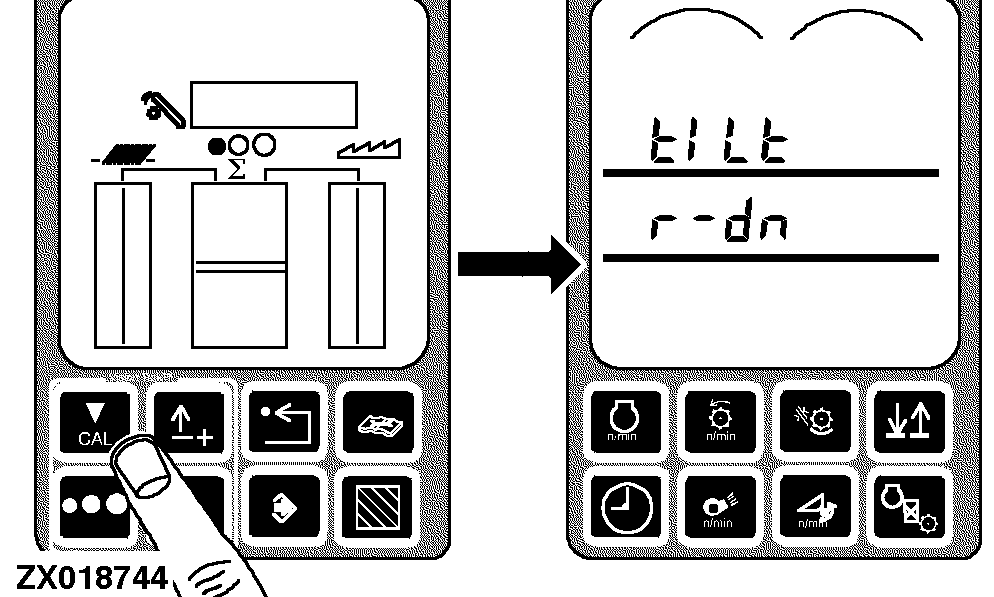

Press calibration button. tiLt and r - dn will be displayed.

ZX018744

OUO6075,0003ACB -19-07OCT04-7/12

To establish right tilt sensor setting:

Press and hold right side of HEADERTRAK lateral tilt switch (A) until feeder house rotates completely right. This establishes right tilt sensor setting.


A-HEADERTRAK Lateral Tilt Switch

H78203

OUO6075,0003ACB -19-07OCT04-8/12

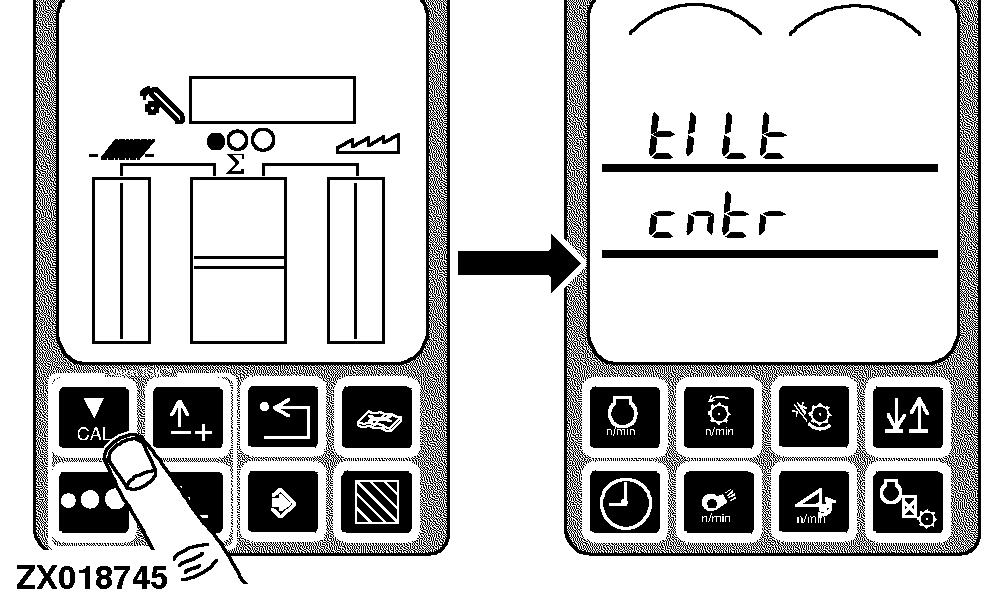

Press calibration button. tiLt and cntr will be displayed.

ZX018745

OUO6075,0003ACB -19-07OCT04-9/12

Use HEADERTRAK lateral tilt switch (A) to level feeder house.

For visual indication of whether header is level with combine chassis, the feeder house is equipped with a manual indicator.

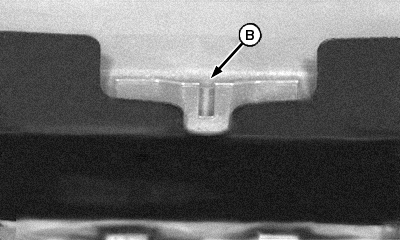

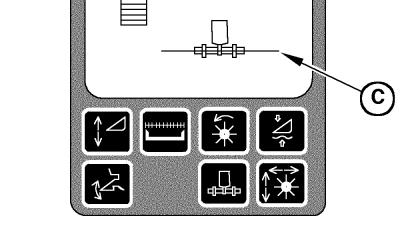

When notch (B) is in the center of rubber seal, the header is approximately level with the combine body. HEADERTRAK lateral tilt symbol (C) also indicates the feeder house is horizontal.


A-HEADERTRAK Lateral Tilt Switch
B-Notch
C-HEADERTRAK Lateral Tilt Symbol

H78206
H54617

Standard Combine Notch

H68479

OUO6075,0003ACB -19-07OCT04-10/12

Press calibration button. EOC will be displayed.

ZX018739

OUO6075,0003ACB -19-07OCT04-11/12

Press enter button to store calibration value or press back arrow button to abort calibration (not save values).

Press back arrow button to return to normal operation.

ZX018734
