Machine Harvesting Threshold Calibration

Machine Harvesting Threshold calibration allows the operator to set a header height value that will switch the area counter OFF.

Prepare machine for calibration:

  • Attach header to combine and connect header harness
  • Start combine

OUO6075,0003ACE -19-07OCT04-1/8

Press diagnostic button. dIA will be displayed.

ZX018729

OUO6075,0003ACE -19-07OCT04-2/8

Press calibration button. CAL and ACF will be displayed.

H73140

OUO6075,0003ACE -19-07OCT04-3/8

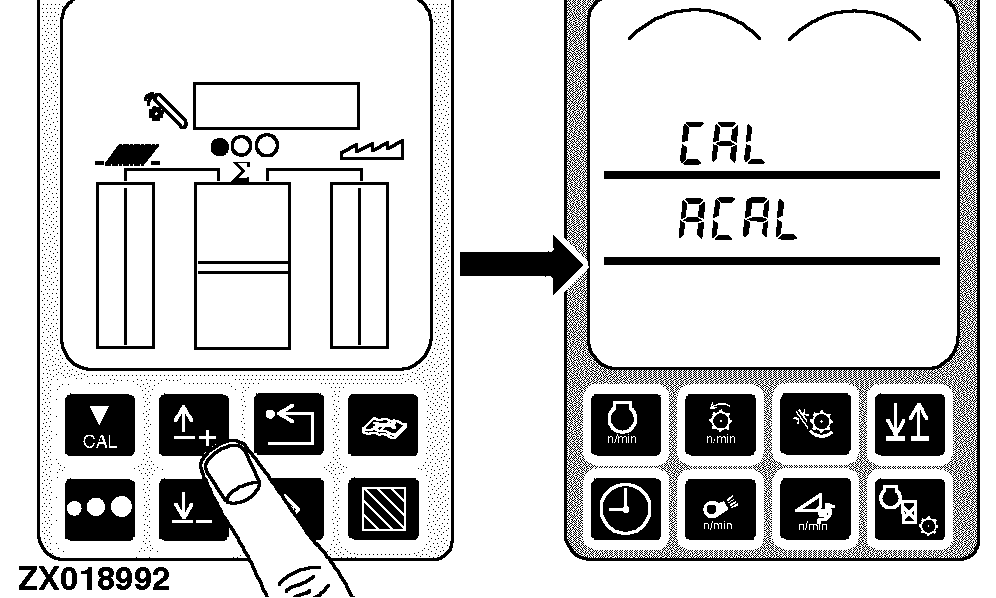

Press up or down arrow button until CAL and ACAL appear.

ZX018992

OUO6075,0003ACE -19-07OCT04-4/8

Press enter button.

ZX018990

OUO6075,0003ACE -19-07OCT04-5/8

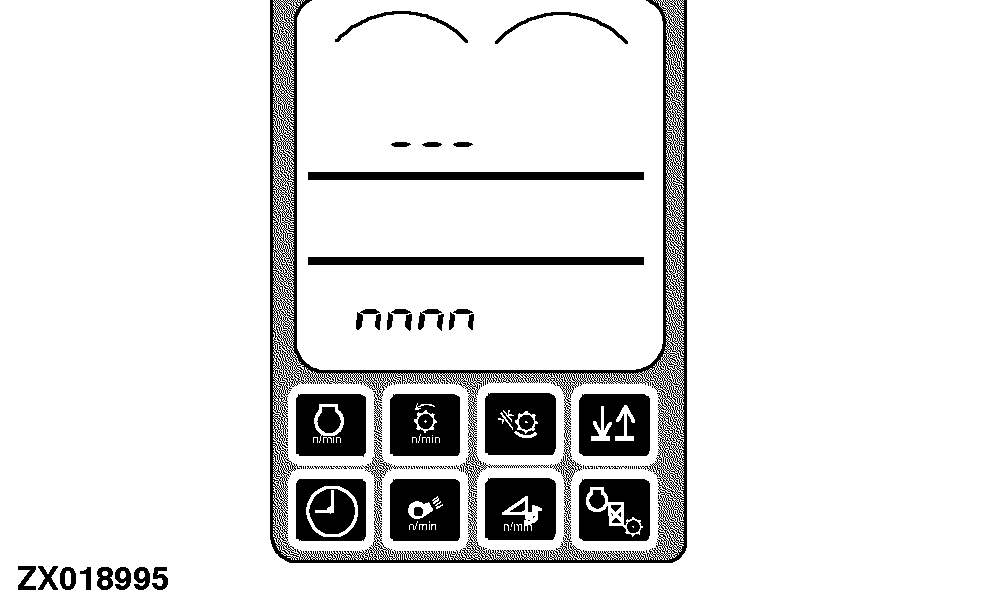

Display will show current machine threshold in the units.

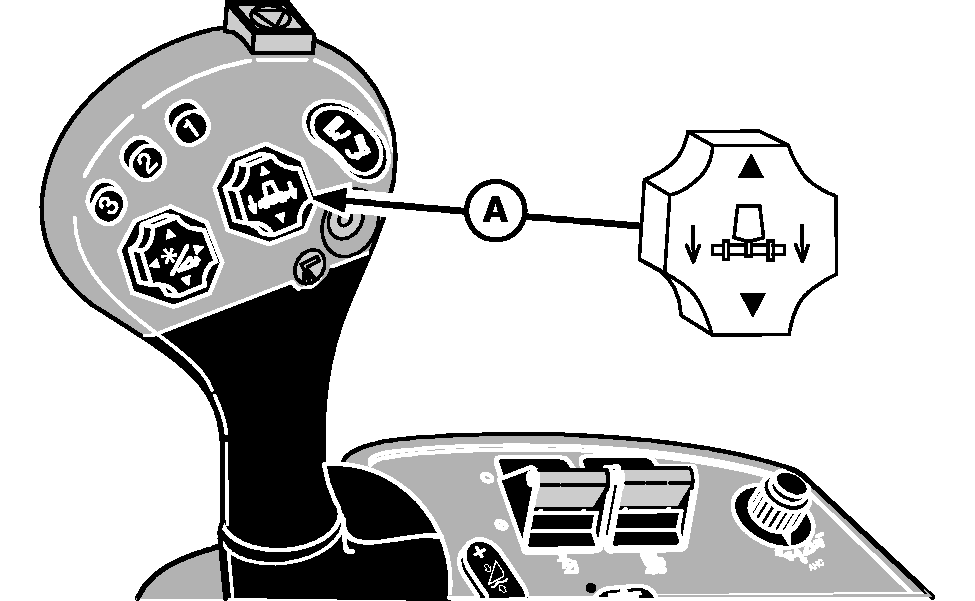

Raise header with header raise/lower switch (A) to desired position for the not harvesting signal to be generated.


A-Header Raise/Lower Switch

ZX018995
H78203

OUO6075,0003ACE -19-07OCT04-6/8

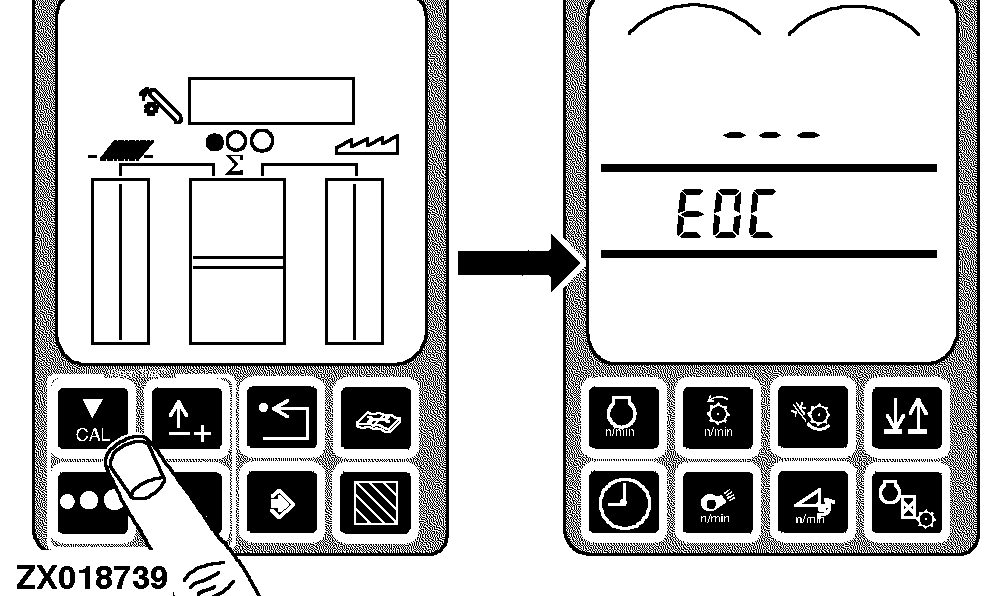

Press calibration button to save new position. New threshold will be displayed for two seconds, then EOC will be displayed. (EOC) shows that calibration was successful.

ZX018739

OUO6075,0003ACE -19-07OCT04-7/8

Press enter button twice to store calibration value and return to normal operation or press back arrow button to abort calibration (not save values).

Press back arrow button to return to normal operation.

ZX018734

OUO6075,0003ACE -19-07OCT04-8/8
