Area Counter Enable Calibration

To enable Area Counter.

Press diagnostic button. dIA will be displayed.

ZX018729

OUO6075,0003ACF -19-07OCT04-1/6

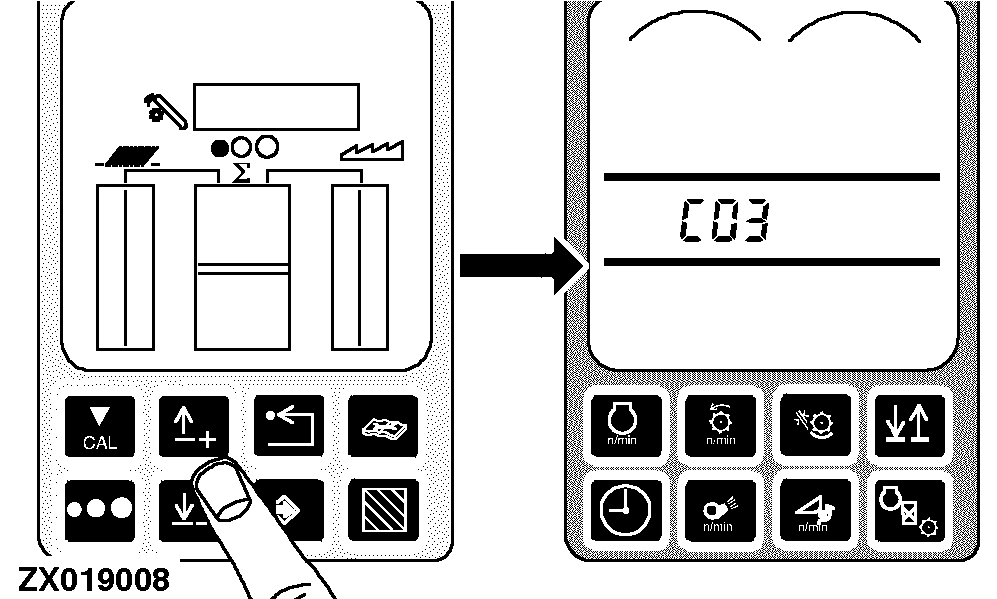

Press up or down arrow button until C03 is displayed.

ZX019008

OUO6075,0003ACF -19-07OCT04-2/6

Press enter button.

ZX018990

OUO6075,0003ACF -19-07OCT04-3/6

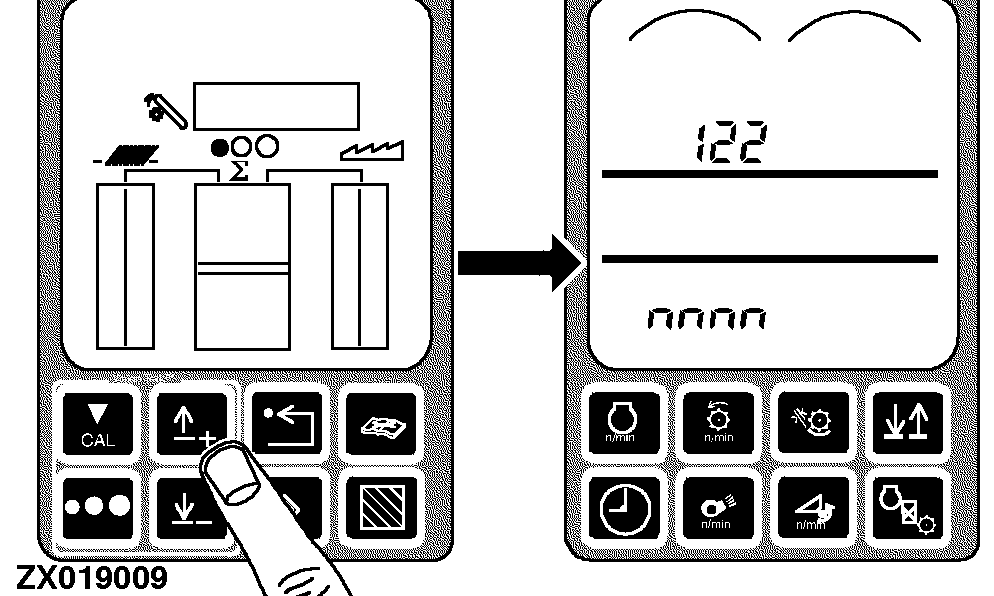

Press up or down arrow button until 122 is displayed.

ZX019009

OUO6075,0003ACF -19-07OCT04-4/6

Press enter button.

ZX018990

OUO6075,0003ACF -19-07OCT04-5/6

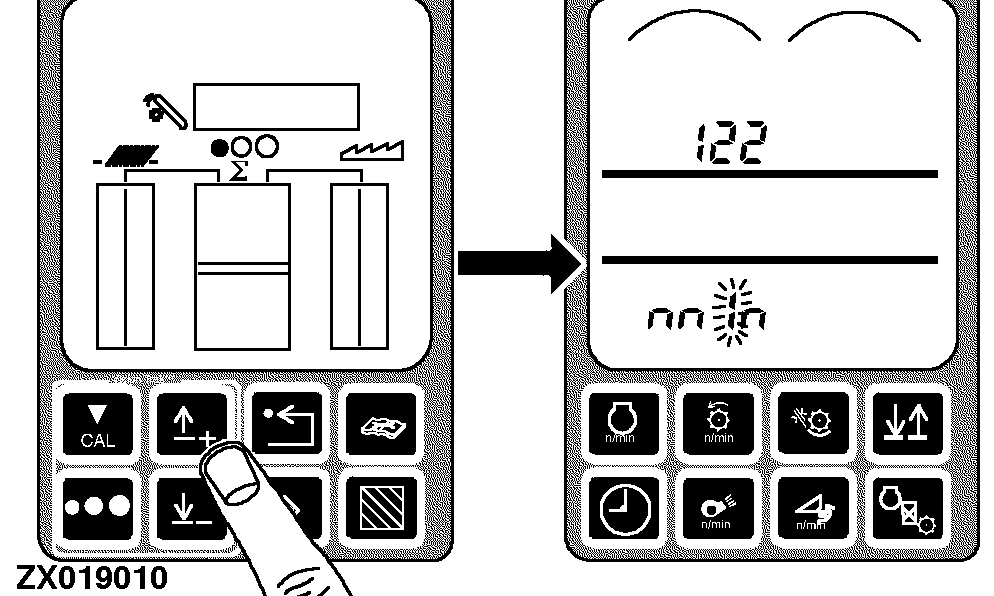

Input the desired value:

  • First digit will flash.
  • Press calibration button.
  • Second digit will flash.
  • Press calibration button.
  • Third digit will flash.
  • Press up or down arrow button until 1 appears.
  • Press calibration button.
  • Fourth digit will flash.
  • Press calibration button.
  • Press enter button to enter the new value into memory.

Return to normal operation:

  • Press back arrow button to return to normal operation.
  • Turn key switch OFF.
  • The next time the machine is started, this calibration information will be used by the combine.

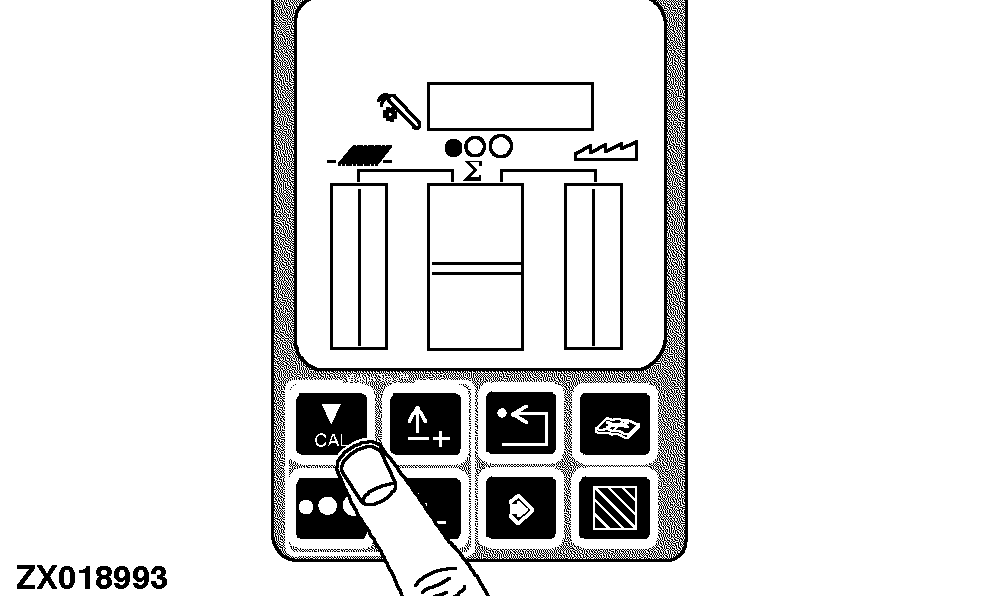

ZX019010
